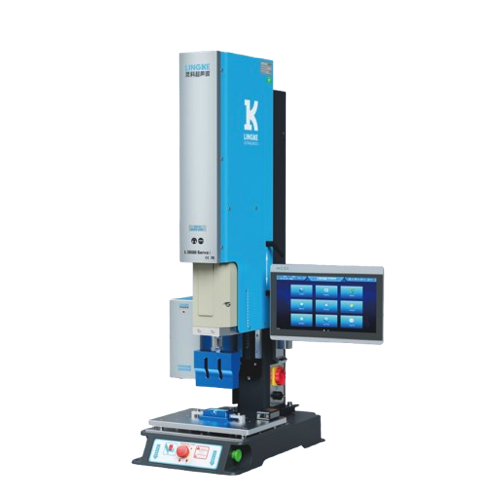

Lingke L3000 Servo ES Ultrasonic Welding Machine (20kHz: 2000W / 2600W; 15kHz: 2600W / 3000W)
ManufacturerLingke(View more products from this manufacturer)
ModelL3000 Servo ES
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 20kHz / 15kHz
Power: 20kHz: 2000W (Horizontal) / 2600W; 15kHz: 2600W / 3000W
Input Voltage: AC220V
Horn Stroke: 100mm
Machine Journey: 370mm
Output Time: 0.01-9.99s
Welding Capability: 20kHz: Φ170mm / Φ220mm; 15kHz: Φ220mm / Φ260mm
Operation Switch: Two-hand release, emergency stop button at the front, and external control switch supported
Outline Dimension (Press): 680 × 400 × 1656 mm
Outline Dimension (Generator): 422 × 98 × 220 mm
Net Weight (Press): 160.5kg
Net Weight (Generator): 6.5kg
