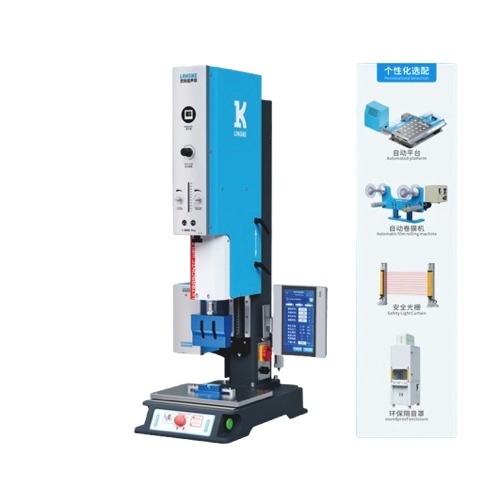

Lingke L3000 Plus Ultrasonic Welding Machine (20kHz: 2000W / 3000W; 15kHz: 3000W / 4000W)

Frequency: 20kHz / 15kHz

Power: 20kHz: 2000W / 3000W; 15kHz: 3000W / 4000W

Input Voltage: AC220V

Cylinder Size (mm): 80 × 100

Machine Journey: 370mm

Output Time: 0.01-9.99s

Air Pressure: >1, ≤7bar

Welding Capability: 20kHz: Φ170mm / Φ260mm; 15kHz: Φ260mm / Φ330mm

Operation Switch: Two-hand release, emergency stop button at the front, and adding external control switch supported.

Dimension (Press): 680 × 400 × 1568 mm

Dimension (Digitalization Generator): 436 × 124 × 278 mm

Net Weight (Press): 117kg

Net Weight (Digitalization Generator): 8.5kg
