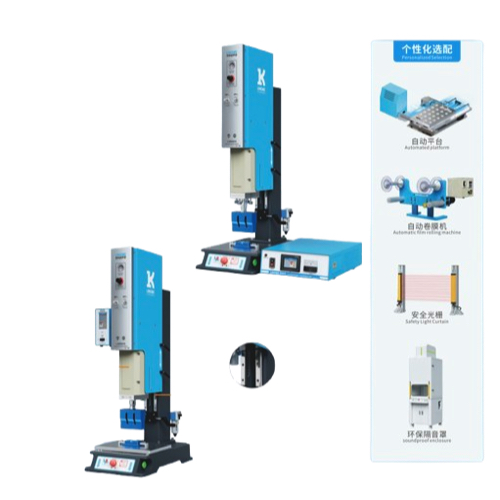

Lingke L3000 ES Ultrasonic Welding Machine (20kHz: 2000W / 2600W; 15kHz: 2600W / 3000W)

Frequency: 20kHz / 15kHz

Power: 20kHz: 2000W / 2600W; 15kHz: 2600W / 3000W

Input Voltage: AC220V

Cylinder Size (mm): 63 × 75 / 80 × 75

Machine Journey: 336mm

Output Time: 0.01-9.99s

Air Pressure: >1, ≤7bar

Welding Capability: 20kHz: Φ170mm / Φ220mm; 15kHz: Φ220mm / Φ260mm

Operation Switch: Two-hand release, emergency stop button at the front, and adding external control switch supported.

Dimension (Press): 680 × 400 × 1552 mm

Dimension (Digitalization Generator): 430 × 230 × 108 mm

Dimension (Analog Generator): 560 × 420 × 155 mm

Net Weight (Press): 84kg

Net Weight (Digitalization Generator): 6.5kg

Net Weight (Analog Generator): 17.54kg
