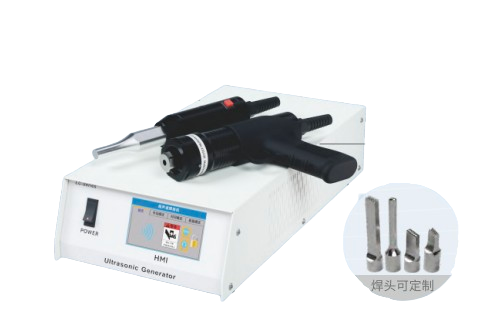

Lingke L-HG2015A-3 Hand-Held Welding Machine (20 kHz; 1500W)

Frequency: 20kHz

Power: 1500W

Input Voltage: AC220V

Oscillation Time: 0.01 - 9.99s

Welding Capability: Φ30mm

Generator Size: 433 × 220 × 105 mm

Handle Size/ Gun-type Handle: 188 × 75 × 190 mm

Net Weight (Generator): 4.7kg

Frequency Display: Real-time display frequency

Display Screen: LCD full color touch screen

Maximum Output: 10% Higher than rated output frequency

Load Display: Real-time monitoring of current load value during operation

Adjustable Amplitude: 10% to 100% (Digital type)

Operating Temperature: -20°C to +45°C

Non-standard Mode: External control supported

Multiple Protection: Overcurrent, overvoltage, frequency offset, overload, fuse, etc.
