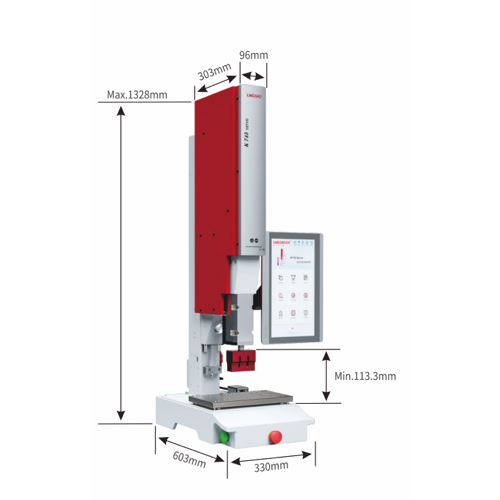

Lingke K745 Servo Ultrasonic Welding Machine (35kHz; 900W)

Frequency: 35kHz

Power: 900W

Drive Mode of Horn: Servo Control

Operating Mode: Time Mode / Energy Mode / US-Stop Mode / Travel Mode (Absolute/Differential/Multi)

Trigger Mode: Travel Trigger / Pressure Trigger / Time Trigger / Time from Source / External Trigger

Pressure Control: 4 levels of actual pressure adjustment

Language: Chinese (CN), English (EN), etc.

Data Bank: 199 memories

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 224.8 mm

Distance (Amplifier to Base): Min. 113.3 mm

Weight: 88 kg (including generator)

Max. Force: 745N (Constant triggering pressure)

Generator Model: SV 35-900W

Switches: Two-hand START with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Welding Record: 100,000 pcs (distinguishes between qualified and defective products)

IOT Function: Supports WiFi, cloud data management, remote assistance, RS485/232, USB data transfer, and printer output
