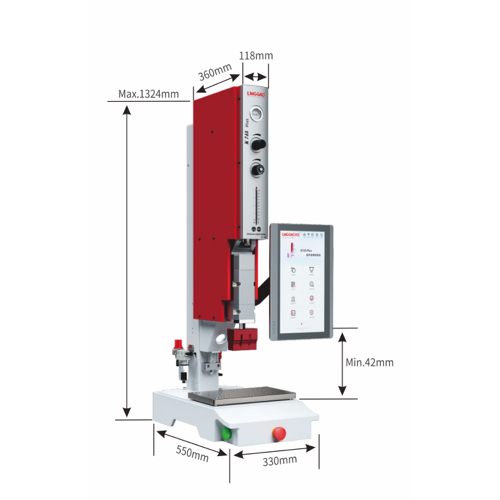

Lingke K745 Plus Ultrasonic Welding Machine (35kHz; 900W)

Frequency: 35kHz

Power: 900W

Drive Mode of Horn: Pneumatics Control

Operating Mode: Time Mode / Energy Mode / US-stop Mode / Travel Mode (Absolute/Differential)

Trigger Mode: Travel Trigger / Pressure Trigger / Time Trigger / Time from Source

Language: Chinese (CN), English (EN), etc.

Data Bank: 199 memories (stores 199 sets of welding parameters)

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 224.8mm

Distance (Amplifier to Base): Min. 42mm

Cylinder Stroke: 40x100mm

Stroke Range: 20-100mm, fine-tuning supported, accuracy: 0.01mm (No need to adjust the height of the press)

Weight: 82kg (including generator)

Max. Force: 745N (at 6 bar compressed air)

Generator Model: PL 35-900W

Switches: Two-hand start with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Welding Record: 100,000 pcs (distinguishes between qualified and defective products)

IOT Function: Supports WIFI wireless network connection, cloud data management, remote assistance, RS485/232, USB data management, printer output
