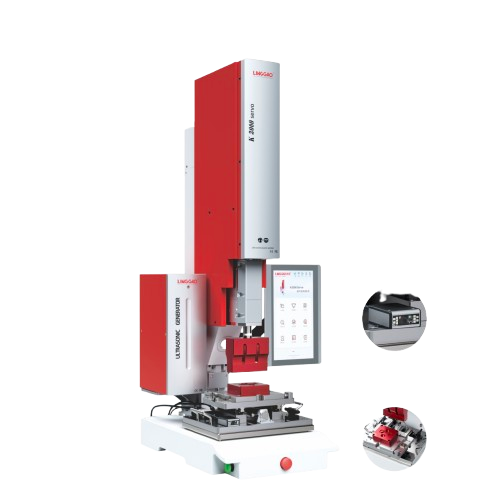

Lingke K3000 Servo Ultrasonic Welding Machine (20kHz; 2000W / 3000W)

Frequency: 20kHz

Power: 2000W / 3000W

Drive Mode of Horn: Servo Control

Operation Mode: Time Mode / Energy Mode / US-Stop Mode / Travel Mode (Absolute/Differential/Multi)

Trigger Mode: Travel Trigger / Pressure Trigger / Time Trigger / Time from Source / External Trigger

Pressure Control: 4 levels of actual pressure adjustment

Language: Chinese (CN), English (EN), etc.

Data Bank: 199 memories (stores 199 sets of parameters)

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 248 mm

Distance (Amplifier to Base): Min. 85 mm

Weight: 172 kg (with generator)

Max. Force: 3000N (Constant triggering pressure)

Generator Model: SV 20-2000W / 3000W

Switches: Two-hand START with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Welding Record: 100,000 pcs (distinguishes between qualified and defective products)

IOT Function: Supports WiFi, cloud data management, remote assistance, RS485/232, USB data transfer, and printer output
