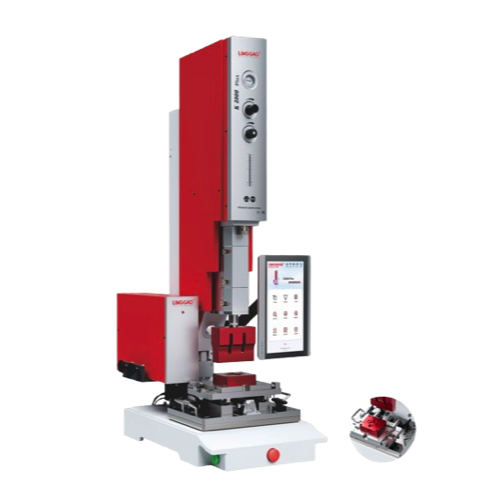

Lingke K3000 Pro Ultrasonic Welding Machine (20kHz; 2000W / 3000W)

Frequency: 20kHz

Power: 2000W / 3000W

Drive Mode of Horn: Pneumatics Control

Operating Mode: Time Mode / Energy Mode / US-stop Mode

Trigger Mode: Pressure Trigger / Time Trigger / Time from Source

Language: Chinese (CN), English (EN), etc.

Data Bank: 199 memories (stores 199 sets of welding parameters)

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 248mm

Distance (Amplifier to Base): Min. 85mm

Cylinder Stroke: 80x100mm standard (63x100mm optional)

Stroke Range: 20-100mm, fine-tuning supported, accuracy: 0.01mm (No need to adjust the height of the press)

Weight: 150kg (including generator)

Max. Force: 3000N (at 6 bar compressed air)

Generator Model: PL 20-2000W / 3000W

Switches: Two-hand start with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Welding Record: 100,000 pcs (distinguishes between qualified and defective products)

IOT Function: RS485, USB data management, printer output
