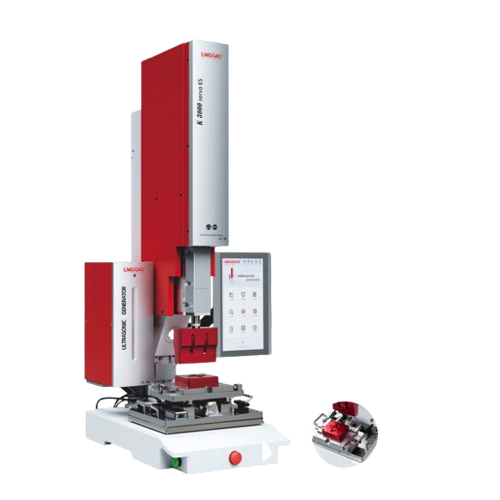

Lingke K3000 Plus Ultrasonic Welding Machine (20kHz; 2000W / 3000W)

Frequency: 20kHz

Power: 2000W / 3000W

Drive Mode of Horn: Pneumatics Control

Operating Mode: Time Mode / Energy Mode / US-stop Mode / Travel Mode (Absolute/Differential)

Trigger Mode: Travel Trigger / Pressure Trigger / Time Trigger / Time from Source

Language: Chinese (CN), English (EN), etc.

Data Bank: 199 memories

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 248mm

Distance (Amplifier to Base): Min. 85mm

Cylinder Stroke: 80x100mm standard, 63x100mm optional

Stroke Range: 20-100mm, fine-tuning supported, accuracy: 0.01mm; No need to adjust the height of the press

Weight: 151kg (with generator)

Max. Force: 3000N (at 6 bar compressed air)

Generator Model: PL 20-2000W / 3000W

Switches: Two-hand start with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Welding Record: 100,000 pcs (distinguishes between qualified and defective products)

IOT Function: Supports WiFi wireless network connection, cloud-based data management, remote assistance, RS485/232, USB data transfer, and printer output
