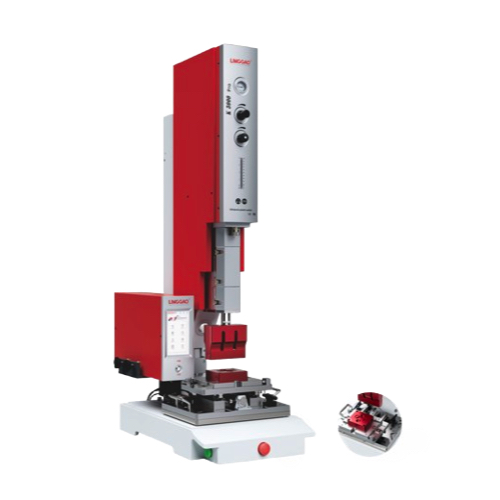

Lingke K3000 Easy Ultrasonic Welding Machine (20kHz; 1500W / 2000W / 3000W)

Frequency: 20kHz

Power: 1500W / 2000W / 3000W

Operating Mode: Time Mode / Power Mode / US-Stop Mode

Trigger Mode: Time Trigger / External Trigger

Booster (Ratio): Titanium 1:1, 1:1.5, 1:2, 1:2.5

Language Support: EN, DE, ES, FR, IT, etc.

Data Bank: 99 memories (stores up to 99 sets of welding parameters)

Input Voltage: 220V ± 10% AC, 1 Phase 50/60Hz

Throat Depth: 203.8mm

Distance (Amplifier to Base): Min. 144mm

Cylinder Stroke: 63x100mm standard (50x100mm, 80x100mm optional)

Stroke Range: 20-100mm, fine-tuning supported, accuracy: 0.01mm (No need to adjust the height of the press)

Weight: 122kg (including generator)

Max. Force: 3000N (at 6 bar compressed air)

Generator Model: STD 15-2000W / 3000W

Counter: Adjustable range 1 - 999,999,999

Switches: Two-hand start with EMERGENCY STOP at front

Pin Code: 4 digits to protect access to parameters

Drive Energy (Air Requirement): Compressed air supply; 7 bar maximum, 6 bar nominal
