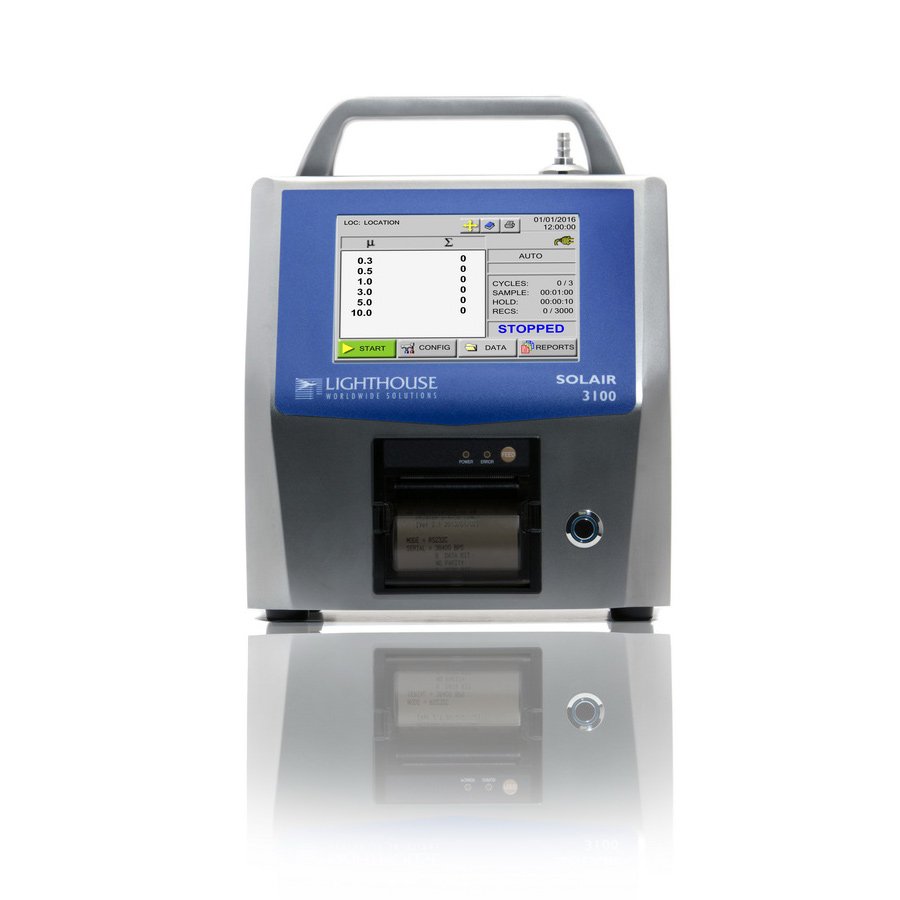

Lighthouse SOLAIR Airbone Particle Counter (0.3 - 25.0μm, 1 CFM)

Minimum Size Detection: 0.3 µm

Standard 6 Channel Sizes: 0.3, 0.5, 1.0, 3.0, 5.0, and 10 µm

Additional Available Sizes: 0.7, 25.0 µm

Flow Rate / Nozzle Size: 1 CFM (28.3 LPM), 1/4” Inlet Barb

Weight: 13.95 lbs (6.33 kg)

Concentration Limits: 1,000,000 Particles/ft3@10%(35,300,000/m3)

Communication: USB, Ethernet, RS-485, USB flash drive

Data Storage Records: 3,000 Records

Count Modes: Automatic, manual, beep, concentration, cumulative/differential

Printer: Available with and without internal printer

Reports: ISO14644-1 :2015 , EU GMP Annex I

Alerts: On counts & low battery; Includes ext. Alarm connection

Enclosure: Stainless steel

Touch Screen Display: 5.7 inch (14.47 cm) color TFT touch screen display

Power: 100-250 VAC, 47-63 Hz

Light Source: Extreme Life Laser Diode with >20 years MTTF

Calibration: ISO21501-4 Compliant and Accredited ISO 17025

Zero Count Level: <1 Count /5 minutes (meets specifications of JIS B9921 and reporting requirements of ISO 21501-4 Annex C)

Sample Output: Internally filtered to HEPA standards (>99.97 @ 0.3 µm)

Vacuum Source: Internal closed-loop controlled pump

Languages: English (US), French, German, Spanish, Italian, Russian, Japanese, Korean, and Chinese

Supporting Software: LMS Express, LMS Pharma, LMS Professional, LMS XChange

Includes: Isokinetic sample probe, tubing, purge filter, power cables, spare fuse, printer paper, Calibration Certificate
