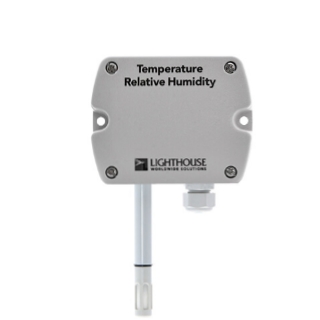

Lighthouse RemoteTRH Temperature and Relative Humidity Sensor (0-100% RH / -40...60°C)

Working Range: 0-100% RH / -40...60°C

Accuracy at 20 °C: ±2.5% RH / ±0.3°C

Temperature Ranges: Operating: -40...60°C (-40...80°C for remote probe) Storage: -40...60°C

Display: Not Available

Outputs: 4-20mA

Power supply: 10V + RL x 20 mA < V+ < 30V DC

Connection: Screw terminals, max. 1.5 mm²

Housing material: Polycarbonate, UL94V-0 (with Display UL94HB) approved

Protection class: IP65 / NEMA 4

Cable gland: M16 x 1,5

Probe cable (type C): PVC, Ø 4.3mm, 4 x 0.25 mm², Length: 1.5 or 3m (4.9 or 9.8ft)

Electromagnetic compatibility: EN61326-1 EN61326-2-3 - Industrial Environment

Datasheet
