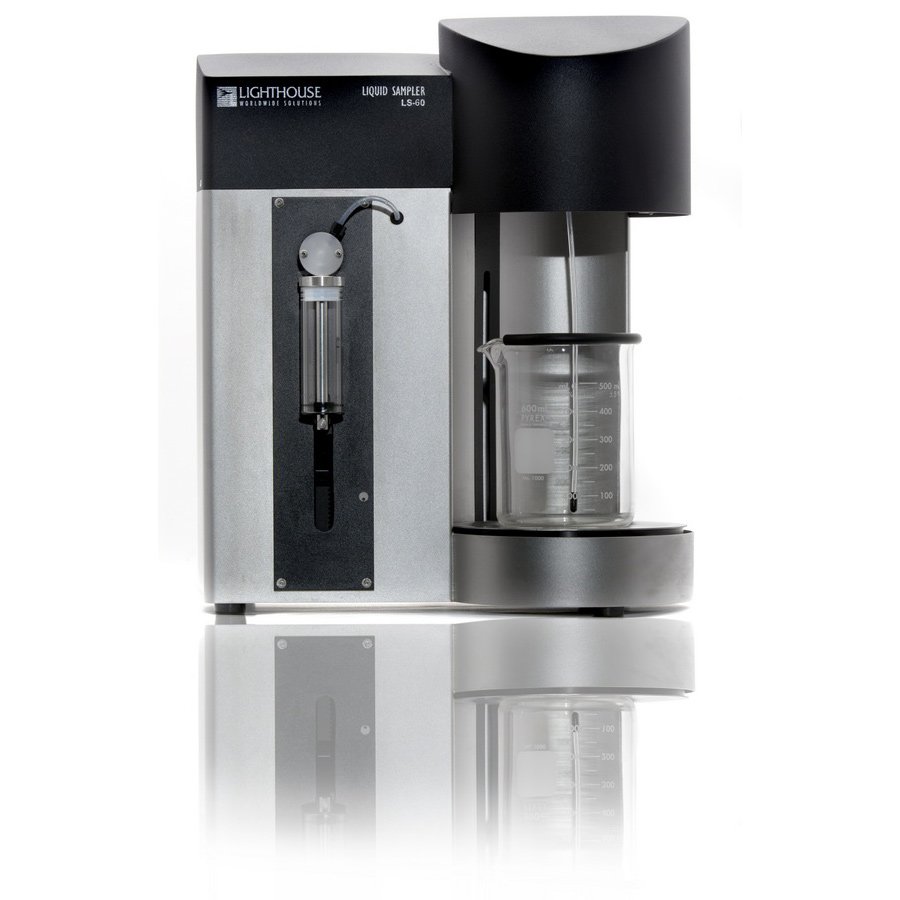

Lighthouse LS-60 Liquid Batch Sampler

Minimum Size Detection: 1.0 µm

Number of channels: 8

Size ranges: 0.1 - 0.5 μm; 0.2 - 2.0 μm; 0.3 - 3.0 μm; 0.5 - 100.0 μm

Flow Rate: 60 ml/minute

Syringe Sizes: 10 ml, 25 ml

Maximum Sample: 1 liter

Environmental Conditions:

+ Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing

+ Storage: 14°F to 122°F (-10°C to 50°C) / up to 98% non-condensing

Communication Mode: RS-485 MODBUS, RS-232

Connectors: RJ-45

Laser Source: Lazer diode

Supporting Software: LS-60 Software

Stirrer: Magnetic with adjustable speed

Wetted Components: Teflon (PFA), Quartz, Kalrez, Kel F, Polypropylene

Power: 100-240 VAC, 24 VDC

Dimensions: 12.875”(l) x 8.75”(w) x 14.75”(h) [32.7 x 22.2 x 37.5 cm]

Weight: 20.5 lbs (9.3 kg)

Calibration: NIST Traceable

Reports: Current USP, EP, JP, KP, CP and custom recipes

Minimum System Requirement: Windows 7TM or Windows 10TM compatible computer.

Include: Instrument, USB to RJ45 cable, power supply, 500 ml beaker with edge guard, 10 feet of tubing, flow cell cleaning solution, nut and ferrule kit, 2x magnetic stir bars; Operators Manual on USB key; Calibration Certificate and Carry Case with wheels.
