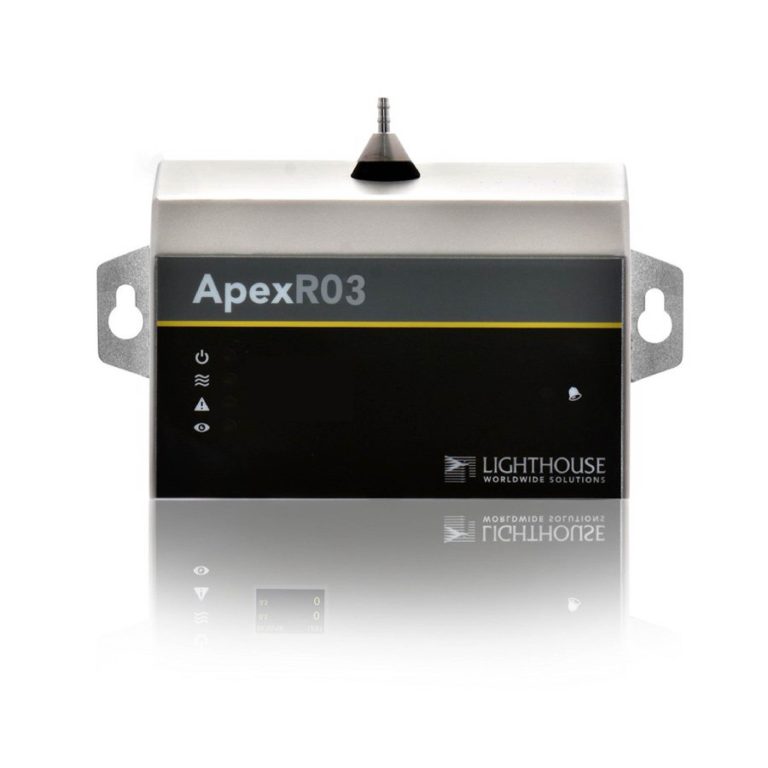

Lighthouse ApexR03 Airbone Particle Counter (0.3 - 5.0 μm, 0.1 CFM)

Minimum Size Detection: 0.3 μm

Standard 2 channel sizes: 0.3, 0.5 μm

Optional 4 channel sizes: 0.3, 0.5, 1.0, 5.0 μm

Additional Available sizes: 0.7, 3.0 μm

Flow Rate / Nozzle Size: 0.1 CFM (2.83 LPM), 1/8” inlet, 1/4” outlet fitting

Concentration Limits: 4,000,000 Particles/ft3@10% (137,200,000/m3)

Data Storage Records: 3,000

Zero Count Level: < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)

External Vacuum Requirements: Nominal 1.0 CFM 18" (45.72 cm) of Hg

Self Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health.

Communication: Ethernet or Serial.

Modbus Protocols: TCP or RTU or ASCII

Software: LMS Pro or LMS Xchange

Calibration: ISO 21501-4 Compliant and Accredited ISO 17025

Power: 24 VDC, PoE

Dimensions: 6.38”x 2.93“ x 4.63” (16.2 x 7.4 x11.7 cm)

Weight: 1.4 lbs (0.63 kg)

Accessories: Smart brackets
