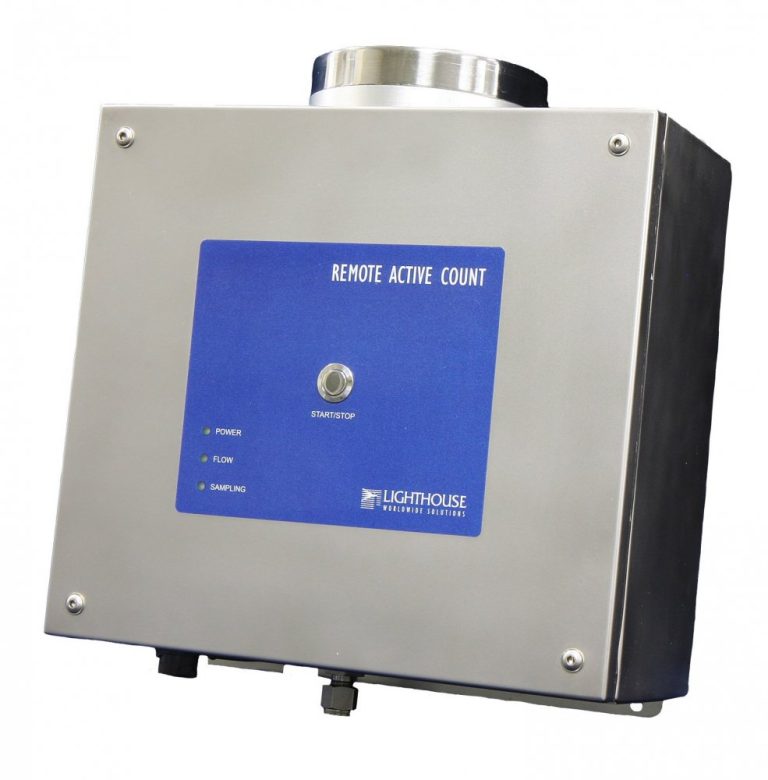

Lighthouse ActiveCountRp Viable Impactor System (1CFM)

Flow Rate: 1 CFM

Sampling Methodology: Impaction Principle

Communication Protocol: RS-485 or 232 Modbus

LED Indicators: Power, Flow, Sampling

User Interface: Manual Start/Stop; Control Software (LMS Express)

Communication Connectors: Sealed Industrial RJ45 Connector

Sample Outlet Connection: 3/8 “ Compression Fitting

Vacuum Requirements: Internal

Power: 100-240 VAC, 50-60 Hz, external AC/DC adapter

Dimensions: 11.0” (w) x 11.0(h) x 5.0” (d) [27.94 x 27.94 x 12.7 cm]

Weight Impactor: 15.1 lbs (6.8 kg)

Operating: 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing

Storage: 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing

Includes: Power supply, sample tubing

Optional: Printed installation guide; LMS Express
