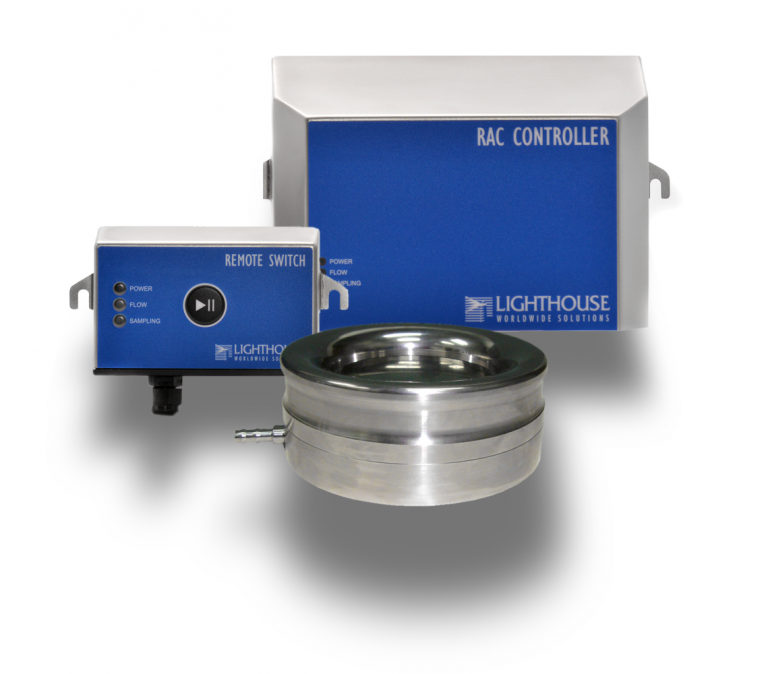

Lighthouse ActiveCountR Viable Impactor System (1 CFM)

Flow Rate: 1 CFM

Sampling Methodology: Impaction Principle

Impactor Head: 316L SS with 113 holes, 19m/s, d50: 1.2μm

Communication Protocol: RS-485 Modbus

LED Indicators: Power, Flow, Sampling

User Interface: Manual Start/Stop; Control Software (LMS Express)

Communication Connectors: Switch: Liquid-tite cord grip; Controller: RJ45

Sample Outlet Connection: 1/4“ Barb

Vacuum Requirements: 16 in HG

Power: 24 VDC

Dimensions Impactor: Diameter: 4.41”(11.20 cm), height 2.1“ (5.33 cm)

Dimensions Switch: 5.8”(w) x 2.7 (h) x 1.0”(d) [15 x 6.9 x 2.5 cm]

Dimensions Controller: W 8.0“ (w) x 5.0 (h) (20.32 cm), H 5.0”(12.7 cm), D 3.0“ (7.62 cm)

Weight Impactor: Impactor: 4.4 lbs (2.00 kg)

Weight Switch: Switch 0.59 lbs (0.27 kg)

Weight Controller: Controller: 2.6 lbs (1.18 kg)

Operating: 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing

Storage: 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing

Includes: Power supply, sample tubing

Optional: Printed installation guide; LMS Express
