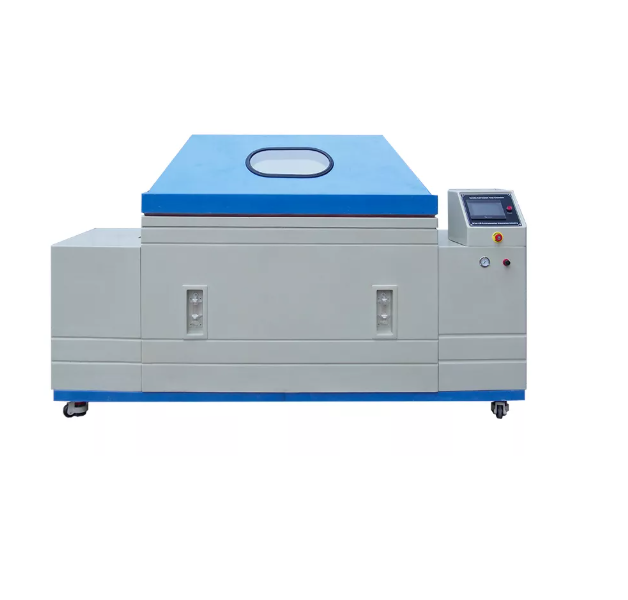

LIB SC-016 Cyclic Salt Spray Corrosion Chamber (CCT Chamber) (1280L; 1～2ml / 80cm2 · h)

Internal dimensions (mm): 1600*900*720

Overall dimensions (mm): 2300*1300*1700

Interior Volume (L): 1280

Temperature Range: +10 ℃ ～ +90 ℃

Temperature Fluctuation: ± 0.5 ℃

Temperature Deviation: ± 2.0 ℃

Humidity Range: 30% ~ 98% RH

Humidity Deviation: + 2%, - 3%

Salt Fog Deposition: 1～2ml / 80cm2 · h

Cooling system: Mechanical compression refrigeration system

Humidifier: External isolation, stainless steel surface evaporation humidifier

Water supply system: Water purification system

Air Preheating: Saturated air barrel (31Liter)

Spraying System: Atomizer tower and Spray nozzles

Salt Fog Collected: Fog collector and fog measure cylinder

Controller: Programmable color LCD touch screen controller, Ethernet connection

Air Circulation: Centrifugal wind fan

Safety Device: Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection

Material: Glass fiber reinforced plastics

Standard Configuration: 8 round bars

Advantages

1. Multi-Phase Corrosion Simulation: The chamber integrates salt fog, high humidity, temperature cycling, and drying phases in a single automated system. This realistic combination replicates field conditions, helping researchers identify weaknesses in coatings, metals, plastics, and electronic components more accurately than traditional single-mode tests.

2. Precise Environmental Control: Equipped with PT100 Class A sensors and advanced PID control, the chamber maintains temperature within ±0.5 °C, humidity within ±2 % RH, and salt deposition at 1–2 mL/80 cm²·h. Such accuracy ensures reproducible test results and reliable evaluation of corrosion resistance.

3. Flexible Test Programming: The intuitive touchscreen controller allows up to 120 program profiles with 100 steps each, supporting complex cycles for multiple materials. Users can predefine testing routines for NSS, AASS, or CASS procedures, saving time and reducing setup errors.

4. Durable, Corrosion-Resistant Construction: The workroom uses glass fiber reinforced plastics resistant to acid gases and salt fog, while the exterior A3 steel frame with electrostatic coating ensures longevity. Components withstand continuous exposure, minimizing maintenance and downtime.

5. Safe, Efficient, and Eco-Friendly: Safety interlocks, automated SO₂ exhaust, and door protections prevent leaks and accidents, while closed-loop water recovery saves up to 80 % of condensate. Energy-efficient refrigeration and optimized airflow maintain performance with reduced operational costs.
