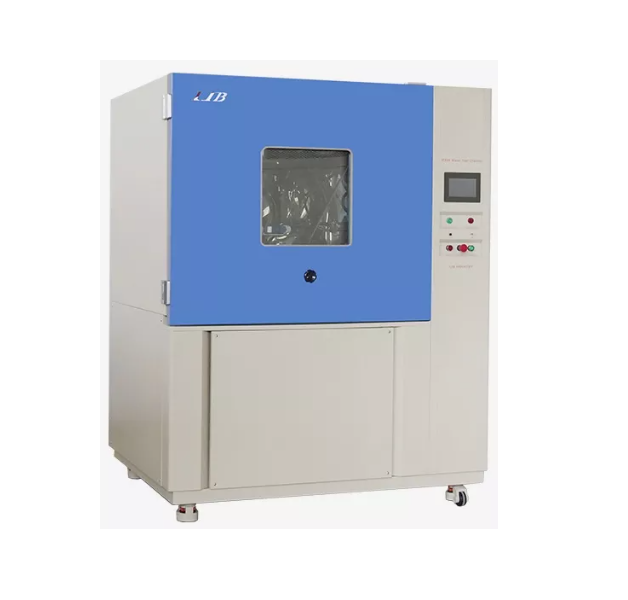

LIB R9K-1200 IPX9K High Pressure & Temperature Water Spray Chamber (1200L)

Internal Dimensions (mm): 1000*1200*1000

Overall Dimensions (mm): 1250*1700*2050

Interior Volume (L): 1200

Water Spray Angle: 0°, 30°, 60°, 90°

Water Spray Temperature: Ambient ~ +88℃ (Adjustable)

Spray Nozzle: Four, 30 Seconds each position

Distance from Water Spraying to Specimens: 10~15cm

Water Pressure: 8000-10000 Kpa (Adjustable)

Water Flow Rate: 14L-16L/min

Testing Platform Speed: 5±1 r.p.m

Testing Platform Height: 200-400 nm (Adjustable)

Testing Platform Diameters: 600mm

Heater Elements: Nichrome heater

Controller: Programmable color LCD touch screen controller, Ethernet connection

Door Lock: Electromagnetic lock

Water supply system: Storage water tank; Booster pump; Automatic water supply; Water purification system;

Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material: Steel Plate with protective coating

Interior Material: SUS304 stainless steel

Observation Window: Double layer insulating glass with wiper

Advantages

1. Extreme High-Temperature & High-Pressure Spray Performance: The chamber produces water heated to +88 °C and applies spray pressure ranging from 8,000 to 10,000 kPa. Four precision nozzles are positioned at 0°, 30°, 60°, and 90°, each operating for 30 seconds, ensuring thorough verification of enclosure sealing under the most demanding spray conditions.

2. Efficient Water Recirculation System: An integrated circulation system continuously delivers water to the spray nozzles while filtering impurities to maintain stable pressure and uniform flow. Built-in water tanks and heating elements ensure consistent temperature control throughout the entire test process while reducing overall water consumption.

3. Intelligent Control & Safety Management: Equipped with an intuitive control interface, the test chamber allows precise setting of spray pressure, water temperature, and test duration. Real-time monitoring and multiple safety protections help prevent equipment malfunction and protect test specimens during operation.

4. Full SUS304 Stainless Steel Construction: The entire chamber is fabricated from SUS304 stainless steel, providing excellent resistance to corrosion in high-temperature, high-humidity, and intensive spray environments. This robust construction ensures long-term reliability and compliance with environmental and durability requirements.

5. Waterproof Power Supply for Live Testing: The chamber features an adjustable-height rotating table with tilt capability, integrated with a waterproof power outlet. This design supports power-on testing of electronic products during water exposure, enabling realistic simulation of actual operating conditions.
