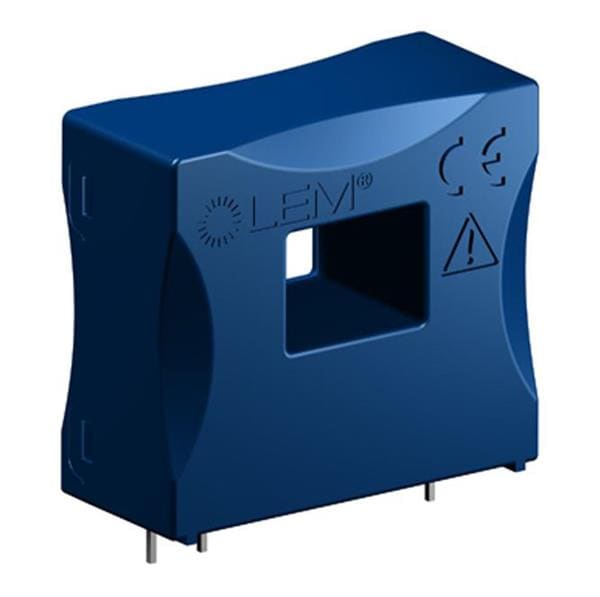

LEM LA 150-P Current Transducer Current Transducer LA 150-P. For the electronic measurement of currents: DC, AC, pulsed, with galvanic separationn between the primary circuit and the secondary circuit.

Width: 16 mm

Height: 33 mm

Length: 37 mm

Accuracy: 0.5 %

Output Type: Digital, Analog

Sensor Type: Closed Loop

Unit Weight: 25 g

Response Time: 500 ns

Current Rating: 150 A

Frequency Range: 150 kHz

Supply Voltage - Max: 15 V

Supply Voltage - Min: 12 V

Operating Supply Voltage: 12 V, 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
