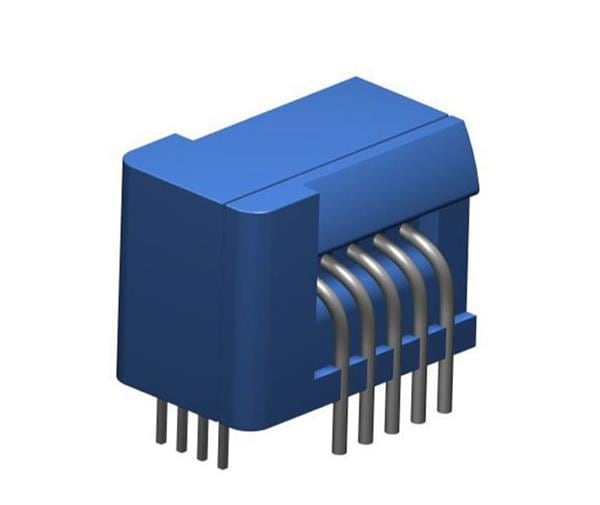

LEM CKSR 75-NP Current Transducer Current Transducer CKSR 75-NP. For the electronic measurement of current: DC, AC, pulsed, with galvanic separation betweenthe primary and the secondary circuit.

Width: 13.4 mm

Height: 16 mm

Length: 21.91 mm

Accuracy: 1 %

Output Type: Digital, Analog

Sensor Type: Closed Loop

Unit Weight: 9 g

Response Time: 300 ps

Current Rating: 75 A

Output Voltage: 375 mV to 4.625 V

Frequency Range: 300 kHz

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
