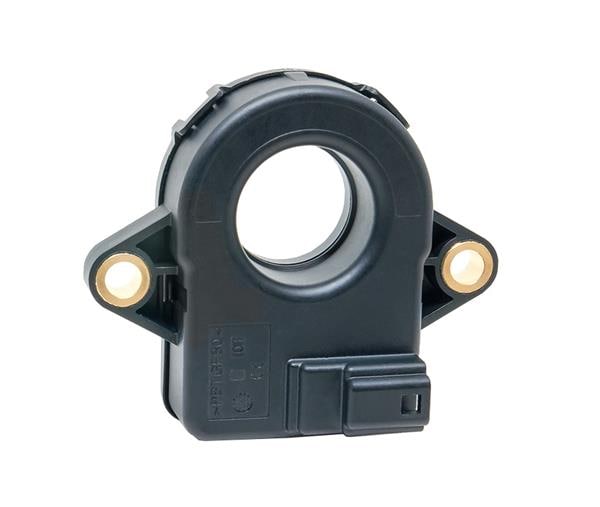

LEM CAB 500-C/SP5 Current Transducer The CAB family is for battery monitoring applications where high accuracy and very low offset are required. It offers galvanic separation between primary circuit (high voltage) and the secondary circuit (12 V system).

Width: 21.25 mm

Height: 71.51 mm

Length: 48.68 mm

Accuracy: 0.5 %

Output Type: Digital

Sensor Type: Open Loop

Unit Weight: 67 g

Response Time: 150 ms

Current Rating: 500 A

Output Voltage: 12 V

Frequency Range: 100 kHz

Supply Voltage - Max: 16 V

Supply Voltage - Min: 8 V

Operating Supply Voltage: 13.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
