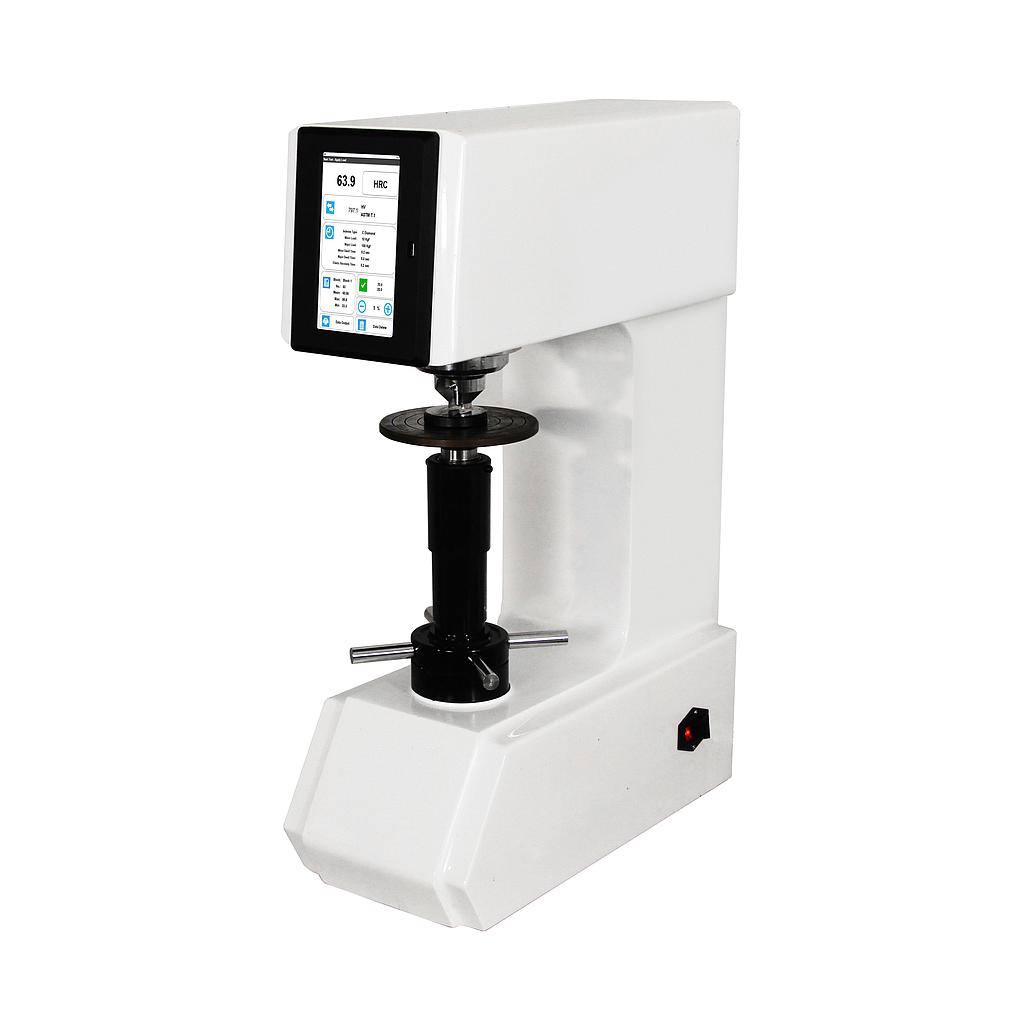

Leeb LHRS-150-45DX Digital Rockwell Hardness Tester

- Indication of Hardness Value: Large LCD screen display

- Data output: USB ( optional RS232)

- Duration time: 0-99s

- Carried Standard: GB/T230.2、ISO6508-2、ASTME18

- Preliminary Testing force: 3、10kgf

- Testing force: 15、30、45、60、100、150kgf

- Rockwell Scale: HRA HRB HRC HRD HRE HRF HRG HRH HRK HRL HRMHRPHRRHRSHRV N T WX Y

- Hardness measuring range:

HRA:20-95 HRB:10-100 HRC:20-70 HRD:40-77

HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100

HRL:50-115 HRM:50-115 HRR:50-115

HR15N: 70-94 HR30N: 42-86 HR45N: 20-77

HR15T: 67-93 HR30T: 29-82 HR45T:10-72Max Height of Specimen 200mm

- Distance of Indenter to outer wall: 180m

- Power supply: AC220V+5%，50-60Hz

- Overall Dimension (mm): 560*220*750

- Net Weight About: 75Kg

Standard Accessories

- Diamond Rockwell Indenter: 1

- 1/16 Ball Indenter: 1

- Rockwell Hardness block: 3

- Large, Medium, “V” shaped TestingTable: 1each

- Superficial Rockwell Hardness block: 3

- Plastic Dustproof cover: 1

- Manual & Certificate: 1 each

- Power Cable: 1
