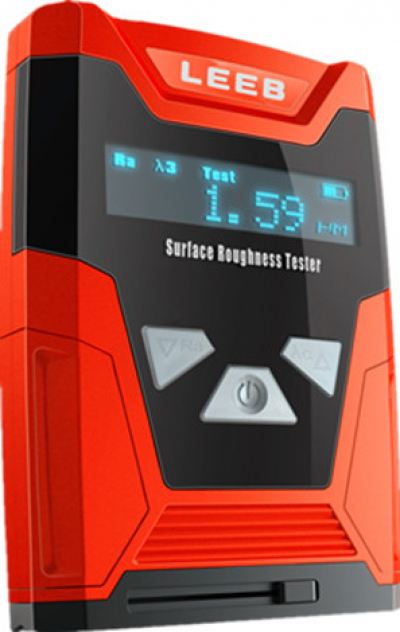

Leeb 410 Surface roughness tester (Ra:0.05-10.0μm Rz:0.1-50μm; 0.001μm)

Roughness parameter: Ra、Rz、Rq、Rt

Measuring range: Ra:0.05-10.0μm Rz:0.1-50μm

Resolution: 0.001μm

Cut-off lengths: 0.25mm / 0.8mm / 2.5mm

Force & Change rate:Sensor stylus forc：≤0.016N; change rate：≤800N/m

Evaluation length: 1.25mm / 4mm / 5mm

Stylus force: ≤0.5N

Sensor: Piezocrystal

Power supply: Rechargeable 3.7V Lithium-Ion battery

Operating temperature: 0 ºC -40 ºC

Weight: 180g

Dimensions: 105×75×24mm

Standard configuration

Main Unit,Calibration block, Power charger, Supporting platform Manual,Certificate, Warranty card

Surface roughness tester
