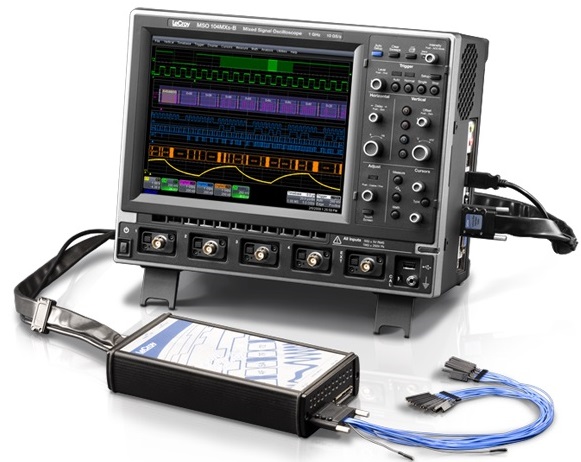

LeCroy MSO 64MXs-B Oscilloscope (600 MHz, 5 GS/s, 4+18 channels)
ManufacturerLECROY(View more products from this manufacturer)
ModelMSO 64MXs-B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Vertical System | |
| Bandwidth | 600 MHz |
| Rise time | 500 ps |
| Input Channels | 4 + 18 |
| Bandwidth Limiters | 20 MHz, 200 MHz |
| Input Impedance | 1 MΩ ± 1.0% || 16 pF ± 2 pF, 50 Ω ± 1.0% |
| Input Coupling | AC, DC, GND |
| Maximum Input Voltage | 1 MΩ: ± 250 Vpk, 50 Ω: 5 VRMS |
| Channel-Channel Isolation | ≥ 52 dB at 100 MHz ≥ 30 dB at 600 MHz |
| Vertical Resolution | 8 bits |
| Sensitivity | 1 MΩ: 2 mV/div - 10 V/div 50 Ω: 2 mV/div - 1 V/div |
| DC Gain Accuracy | ±1.5% |
| Offset Range | ±1 V: 2 mV/div - 99 mV/div ±10 V: 100 mV/div - 1.0 V/div ±100 V: 1.02 V/div - 10 V/div |
Horizontal System | |
| Time/Division Range | 200 ps/div - 1000 s/div |
| Clock Accuracy | 5 ppm |
| Trigger and Interpolator Jitter | 3 ps (rms) |
Acquisition System | |
| Single-Shot Sample Rate/Ch | 10 GS/s on 2 Ch 5 GS/s on 4 Ch |
| Equivalent Sample Rate | 50 GS/s |
| Memory | 32 Mpts/Ch on 2 Ch 16 Mpts/Ch on 4 Ch |
Acquisition Modes | |
| Averaging | Up to 1,000,000 |
| Peak Detect | na |
| Interpolation | Linear, Sin x/x |
| Enhanced Resolution | Up to 11 bits |
| Sequence Mode | Up to 5,000 segments |
Triggering System | |
| Modes | Normal, Auto, Single, Stop |
| Sources | Ch 1 - Ch 4, EXT, EXT/10, AC Line |
| Coupling Mode | AC, DC, LF Rej, HF Rej, |
| Pre-trigger Delay | 0 - 100% Full Scale |
| Post-trigger Delay | 0 - 10,000 Divisions |
| Trigger Sensitivity | 1.0 division: 200 MHz 2.0 division: 600 MHz |
| External Trigger Sensitivity | Ext: 50 mV from DC to 10 MHz 200 mV from 10 MHz to 600 MHz Ext/10: 0.5 V from DC to 10 MHz 2.0 mV from 10 MHz to 600 MHz |
| External Trigger Input Range | Ext: ±0.4 V, EXT/10: ±4.0 V |
Display | |
| Type | Color Touch Screen 10.4" TFT-LCD |
| Resolution | SVGA: 800 x 600 |
| Grid Styles | YT, XY |
Trigger Types | |
| Standard Triggers | Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified |
| Optional Advanced Triggers | na |
| Optional Serial Data Triggers | I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553, ARINC 429, Audio (I2S, LJ, RJ, TDM), USB, MIPI D-PHY, DigRF3G |
Internal Storage | |
| Waveform Storage | 4 memory waveforms plus internal HDD |
| Setup Storage | 6 setups |
Math | |
| Number of Math Traces | 1 |
| Standard Math Functions | Add, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root |
| Optional Math Functions | na |
Measurements | |
| Number of Measurements Displayed | 6 |
| Measurement Parameters | Ampltidue, Area, Base, Delay, Duty Cycle, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Top, Width+, Width- |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Scale Factors | Automatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000 Variable: (÷1x10-6 - ÷10000) |
| Calibration Output | 1 kHz square wave, 1.0 Vp-p, output to probe hook |
Interface | |
| GPIB Port (optional) | 1 (optional) |
| USB (Device) | 0 |
| Ethernet Port | 1 |
| USB (Host) | 5 |
| Serial Port | 1 |
Power Requirements | |
| Voltage | 90 - 264 VAC, 47 HZ - 63 Hz 90 - 132 VAC, 380 HZ - 420 Hz |
| Max. Power Consumption | 340 VA |
Environmental and Safety | |
| Temperature (Operating) | 5 °C to 40 °C |
| Temperature (Non-Operating) | -20 °C to 60 °C |
| Humidity (Operating) | 80% RH, 31 °C 50% RH, 40 °C |
| Humidity (Non-Operating) | 95% RH |
| Altitude (Operating) | 2000 m |
| Altitude (Non-Operating) | 12,192 m |
Physical Dimensions | |
| Dimensions (HWD) | 260 mm x 340 mm x 152 mm (10.25" x 13.4" x 6") |
| Weight | 7.26 kg. (16.0 lbs.) |
