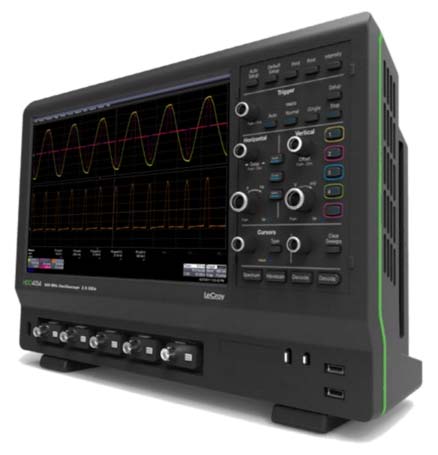

Teledyne Lecroy HDO6034 High Definition Oscilloscopes (350Mhz, 2.5Gsa/s, 4 Ch)
ManufacturerLECROY(View more products from this manufacturer)
ModelHDO6034
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Vertical System | |
| Rise Time (typical, 10-90%, 50 Ω) | 1 ns (typical) |
| Bandwidth | 350 MHz |
| Analog Bandwidth (Max) | 350 MHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (2.4/2.92mm Inputs) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 350 MHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 350 MHz (typical) |
| Input Channels | 4 |
| Bandwidth Limiters | 20MHz, 200MHz |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 Khz) |
| Channel-Channel Isolation | > 1000:1 up to rated BW |
| Vertical Resolution | 12-bits |
| Sensitivity | 50 Ω: 1 mV–1 V/div, fully variable; 1 MΩ: 1 mV–10 V/div, fully variable |
| DC Gain Accuracy | ±(0.5%) Full Scale, offset at 0 V |
| Offset Range | 50Ω +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-10V: 20mV/div-1V/div 1MΩ +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-16V: 20mV/div-100mV/div +/-80V: 102mV/div-198mV/div +/-160V: 200mV/div-1V/div +/-400V: 1.02V/div-10V/div |
| Offset Accuracy | +/-(1.0% of offset value + 0.5%FS + 0.02% of max offset + 1mV) |
Horizontal System | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory) RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm for 5 to 40C + 1.0ppm/year from calibration |
| Jitter Noise Floor | 700fs |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps="" sub="">rms (typical, software assisted) |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50Ohms |
| External Timebase Reference (Output) | 10MHz 2 +/-1 dBm sinewave synchronous to scope timebase |
| External Clock | Input on Aux In DC-100MHz Samples on Rising Edge Threshold range: ECL, TTL, 0 ECL:Threshold:-1.3V, Amplitude>=150mV P-P TTL: Threshold:+1.6V, Amplitude >=1.8V P-P 0V: Threshold: 0V, Amplitude>=150mV P-P |
Acquisition System | |
| Sample Rate | 2.5 GS/s on 4 Ch |
| Single-Shot Sample Rate/Ch | 2.5 GS/s on 4 Ch |
| Random Interleaved Sampling (RIS) | 125 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,000,000 Triggers/sec (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1 usec. |
| Memory Options (4 Ch / 2 Ch / 1Ch) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M/50M/50M (30,000) |
| Maximum Acquisition Memory Points/Ch (4 Ch / 2 Ch) | 250 Mpts on all 4 channel |
Vertical System |
|
| Rise Time (typical, 10-90%, 50 Ω) | 1 ns (typical) |
| Bandwidth | 350 MHz |
| Analog Bandwidth (Max) | 350 MHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (2.4/2.92mm Inputs) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | Not Applicable |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 350 MHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 350 MHz (typical) |
| Input Channels | 4 |
| Bandwidth Limiters | 20MHz, 200MHz |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 Khz) |
| Channel-Channel Isolation | > 1000:1 up to rated BW |
| Vertical Resolution | 12-bits |
| Sensitivity | 50 Ω: 1 mV–1 V/div, fully variable; 1 MΩ: 1 mV–10 V/div, fully variable |
| DC Gain Accuracy | ±(0.5%) Full Scale, offset at 0 V |
| Offset Range | 50Ω +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-10V: 20mV/div-1V/div 1MΩ +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-16V: 20mV/div-100mV/div +/-80V: 102mV/div-198mV/div +/-160V: 200mV/div-1V/div +/-400V: 1.02V/div-10V/div |
| Offset Accuracy | +/-(1.0% of offset value + 0.5%FS + 0.02% of max offset + 1mV) |
Horizontal System |
|
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory) RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm for 5 to 40C + 1.0ppm/year from calibration |
| Jitter Noise Floor | 700fs |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps="" sub="">rms (typical, software assisted) |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50Ohms |
| External Timebase Reference (Output) | 10MHz 2 +/-1 dBm sinewave synchronous to scope timebase |
| External Clock | Input on Aux In DC-100MHz Samples on Rising Edge Threshold range: ECL, TTL, 0 ECL:Threshold:-1.3V, Amplitude>=150mV P-P TTL: Threshold:+1.6V, Amplitude >=1.8V P-P 0V: Threshold: 0V, Amplitude>=150mV P-P |
Acquisition System |
|
| Sample Rate | 2.5 GS/s on 4 Ch |
| Single-Shot Sample Rate/Ch | 2.5 GS/s on 4 Ch |
| Random Interleaved Sampling (RIS) | 125 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,000,000 Triggers/sec (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1 usec. |
| Memory Options (4 Ch / 2 Ch / 1Ch) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M/50M/50M (30,000) |
| Maximum Acquisition Memory Points/Ch (4 Ch / 2 Ch) | 250 Mpts on all 4 channel |
