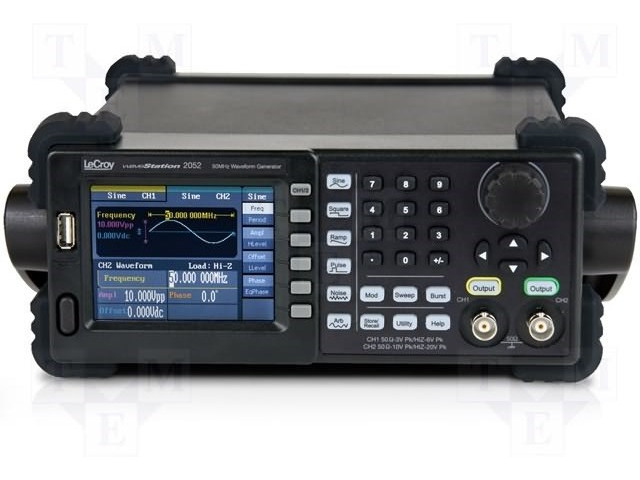

Lecroy WaveStation 2012 Function/Arbitrary Waveform Generator (10Mhz, 125MS/s , 2CH )

- Bandwidth: 10 MHz
- Channels: 2
- Waveforms: Sine, Square, Ramp, Pulse, Noise, Arbitrary: Stairup, Stairdown, Positive Pulse, Negative Pulse,
Up Ramp, Down Ramp, Sinc, Gaussian, LogFall, LogRise, Sqrt, TwoTone, etc
- Sine: 1 μHz - 10 MHz
- Square: 1 μHz - 10 MHz
- Pulse: 500 μHz - 5 MHz
- Triangle/Ramp: 1 μHz - 300 kHz
- Arbitrary Waveforms: 1 μHz - 5 MHz
- Modulation: AM, PM, FM, ASK, PSK and FSKduty-cycle square waveform
- External Clock: 10 MHz ± 100 Hz
- Sync Output: TTL compatible
- Trigger Output: TTL compatible
- External Trigger: TTL compatible
- Output Amplitude - CH1: 2 mVpp - 6 Vpp
- Output Amplitude - CH2: 2 mVpp - 20 Vpp
- Display: 3.5 inch TFT-LCD, 320 x 240, RGB
- Dimensions (H x W x D): 105 mm x 229 mm x 281 mm (4.1” x 9.0” x 11.1”)
- Weight: 2.6 kg (5.7 lbs)
- Power: 100 - 240 Vrms (± 10%), 50 / 60 Hz)
- Included with Standard Configuration
+ Power Cable for the Destination Country
+ USB 2.0 Cable Type A to B (Black, 1 m)
+ USB to GPIB Converter
+ Getting Started Manual
+ Performance Certificate
+ Declaration of Conformity
+ WaveStation PC Software CD
+ Product Registration Card

Extensive Waveform Library

5 basic functions and over 40 built-in arbitrary waveforms

Variety of Modulation Schemes

Built-in modulation capabilities include AM, PM, FM, ASK, PSK and FSK

Simple, Fast Waveform Creation

Quickly access functions from the front panel, view created waveforms and waveform parameters on the display

Connectivity and Communication

USB and GPIB for simple remote control, automation and transferring data

Graphical Waveform Creation

Easily create and edit waveforms on the PC and quickly transfer to the WaveStation
