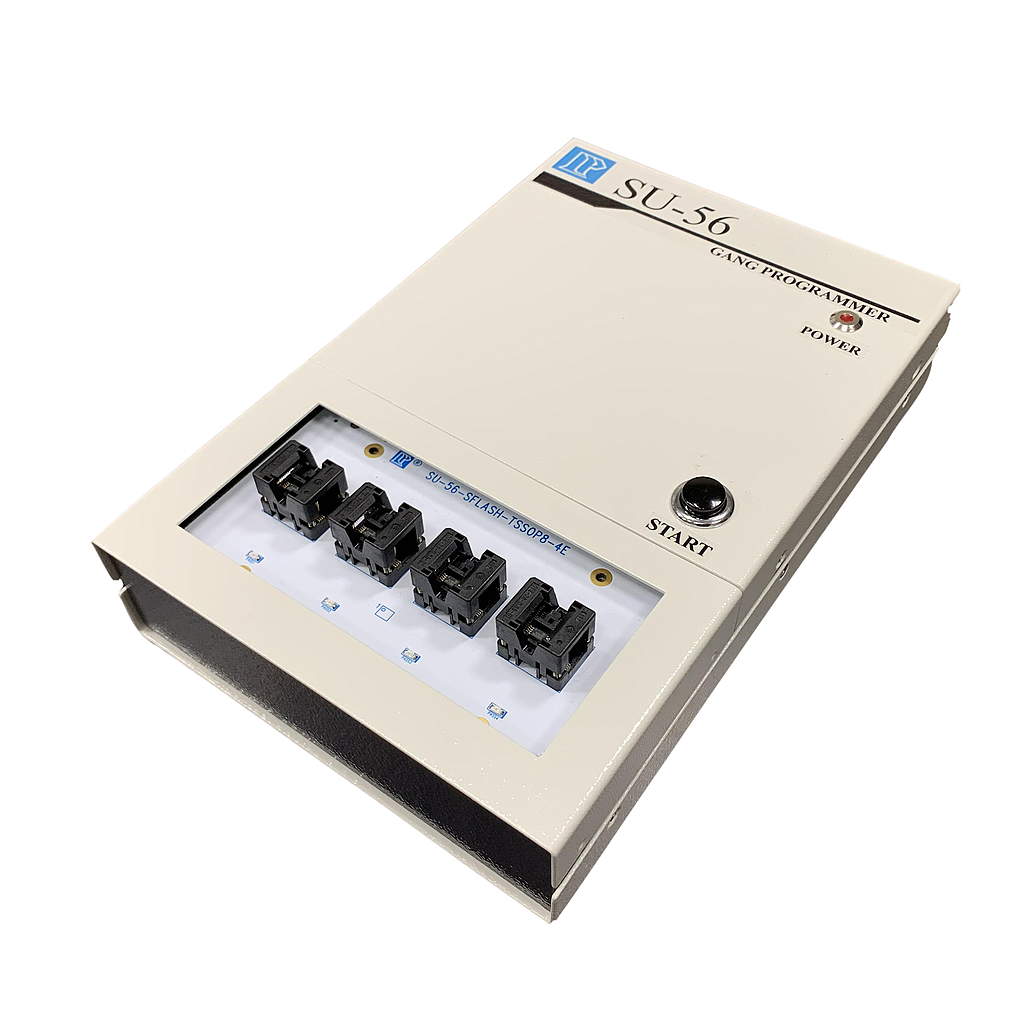

LEAPTRONIX SU-56 Universial & Gang Programmer

Supported Devices: EEPROM, SPINAND/NOR Flash, Paralle NAND/NOR Flash, eMMC/eMCP, MCU, PIC, CPLD, FPGA...

Applicable Packages: SOP, SSOP, TSOP, TQFP, QFN, WSON, SNT, WLCSP, BGA...

Applicable Packages INTEL HEX, MOTOROLA HEX, TEK HEX, ASCII HEX, BINARY...

Supported Adapter: 1~4

Programming Performance

eMMC: 43 Mbyte/sec

SPI 1.5 Mbyte/sec

NAND 6.0 Mbyte/sec

Pin driver: 56~240 (Universal)

Logic Pin Driver

Signal Level: 1.65~6.5V

Signal Frequency: 0~75MHz

Power Driver

VCC /VIO 1.65~6.5V

ICC/IIO 400mA

VPP (VHH) VPP/VHH: 1.5V~15.5V

IPP(IHH) 150mA

eMMC I/O

Pin account: 88

Signal Frequency: 100~200MHz

eMMC Power

VCC: (500mA/ L7~3.6V)x2

VCCQ: (500mA/ L7-3.6V)x2

Dimensions: 250x165x60mm

Weight: 1.5kg

Power Supply: DC 5V

Standard Accessories

SU-56 Main unit x1

USB Cable x1

Power Cord (Input AC110-240V, Output DC 5V/500nA) x1

Optional Accessories

Socket Board: SU-56-XXXX-XXXX..., AH-480-XXXX-XXXX...

Multiple Driver Board

eMMC Driver Board

Hi-Speed Driver Board

Customization Driver Board

Support Programming Expansion Board: SU-56-TO-AH-480, SU-56-TO-DIP48, SU-56-NAND-BASE
