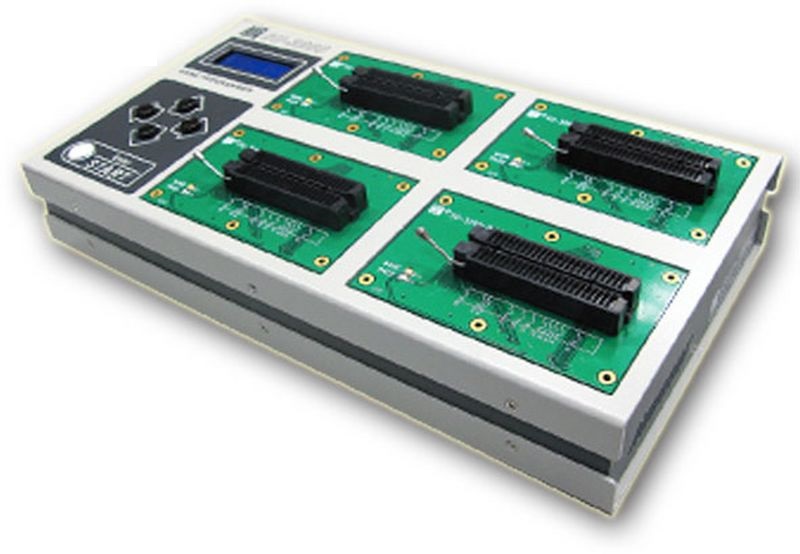

Leaptronix SU-3280 Stand-along Universal Gang Programmer

Logic Signal Level : 1.5V~6.0V,10mV
IOL,IOH Current : 10mA
Logic Signal Frequency : 75MHz (3-5V) / 60MHz (2.5V) / 45MHz (1.8V) / 25MHz (1.5V)
Signal Skew : <±2.5nS (3-5V)
Clock : 0Hz~75MHz
VDD & VIO Level : 1.5V~6.5V,10mV
IDD & IIO Current : 400mA
VPP & VHH Level：1.5V~15.5V,20mV
IPP & IHH Current：150mA
Display：20X4 Character LCD / WORK & PASS LED
Button : Direction key x 4. START key with light x 1
Embedded Memory : 2GBytes FLASH
Module Dimension : 120mm(L) × 75mm(W)
SU-320 Dimension : 360mm(L) × 190mm(W) × 64mm(H)
Weight : 3.0 kg
Support Device : NOR FLASH, SPI EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM…
Support File format : Binary/Machine Code, Intel HEX, TEK HEX, Motorola HEX
PC System Requirements: Windows 8 / 7 / Vista / XP ( 32bits & 64bits )
Standard Accessories
Main Unit x1
USB Cable x1
CD ( Included Driver & User Manual ) x1
AC Line Cord x1
SU-3280-DIP48, Universal DIP-48 module x4

Datasheet
