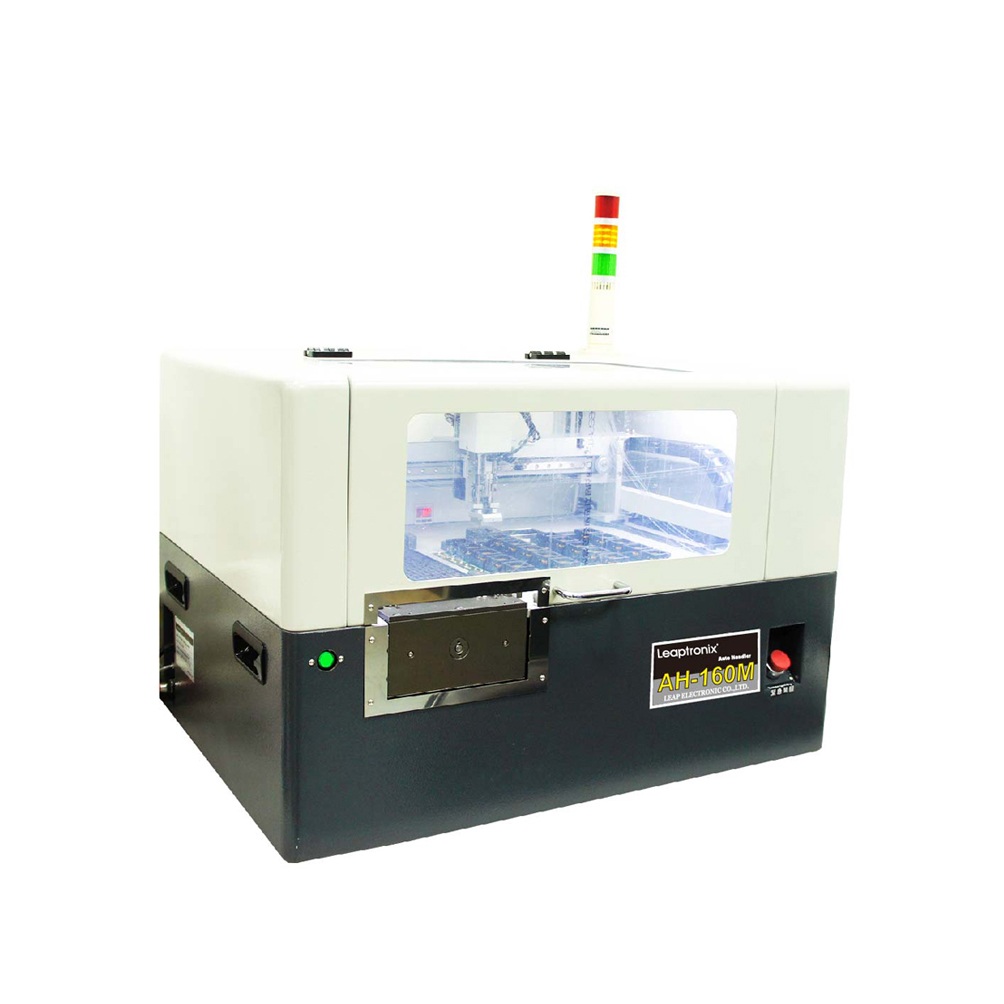

LEAPTRONIX AH-160M Auto eMMC Programmer

Throughput: 550 U.P.H

* Transmission System:

Repeatability: X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm

Max.Stroke:X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm

Pick and place method: Single Vacuum Nozzles

* Position System:

Positioning : Preprocessor

Preprocissor Device Dimensions: 30 x 30mm

* Programming System:

Resident Programmer: SU-6808 eMMC Gang Programmer

Programming and Verify Speed: 22MB/s

Socket Site: 8~16 sockets

eMMC Version: 4.1/4.2/4.3/4.4/4.41/4.51

* Feeding system:

Auto Tray-in / out: JEDEC stander

* Physical Specifications

Dimensions: 520 x 700 x 550mm

Net Weight: 70KG

* PC System Requirements:

Operating System: Windows7 / Vista / XP (32bit & 64bit)

CPU: Core 2 Duo above

Memory: 2GB RAM above

Hard Disk: Main program 500 MB above, buffer 4GB above

Interface: USB 2.0 High Speed

* Operation Requirements:

Input Voltage: AC100V~240V, Single-phase, 3-wires

Input Frequency: 50 / 60Hz

Power Consumption: 200W(Max)

* Standard Accessories

Main unit x 1

CD(included driver and manual) x 1

USB cable x 1

AC cable x 1
