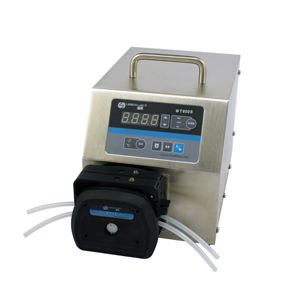

Leadfluid WT600S Basic Variable Speed Peristaltic Pump (3-6000mL/min, 1 CH)
Specifications
Flow range: 3-6000 mL/min
Speed range: 30-600 rpm
Speed resolution: 1 rpm
Flow accuracy: 3%
Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)
Power consumption: <200W
External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: 0~40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
Weight: 6.2kg (13.9 lbs)
| Drive type | Suitable pump heads | channel | Tubing size (mm) | Flow rate (mL/min) per channel |
| WT600S | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 3-1700 |
| YZ25 | 1 | 15# 24# | 50-1700 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 3-1700 | |
| 2 x YZ25 | 2 | 15# 24# | 50-1700 | |
| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17# | 3-1700 | |
| 4 x YZ25 | 4 | 15# 24# | 50-1700 | |
| KZ25 | 1 | 15# 24# 35# 36# | 80-6000 | |
| 2 x KZ25 | 2 | 15# 24# 35# 36# | 80-6000 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 14-1600 | |
| DT15-44 | 4 | 16# 19# 25# 17# | 14-1600 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 3-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 50-2900 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 3-2300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 50-2900 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 3-2300 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 50-2900 |
