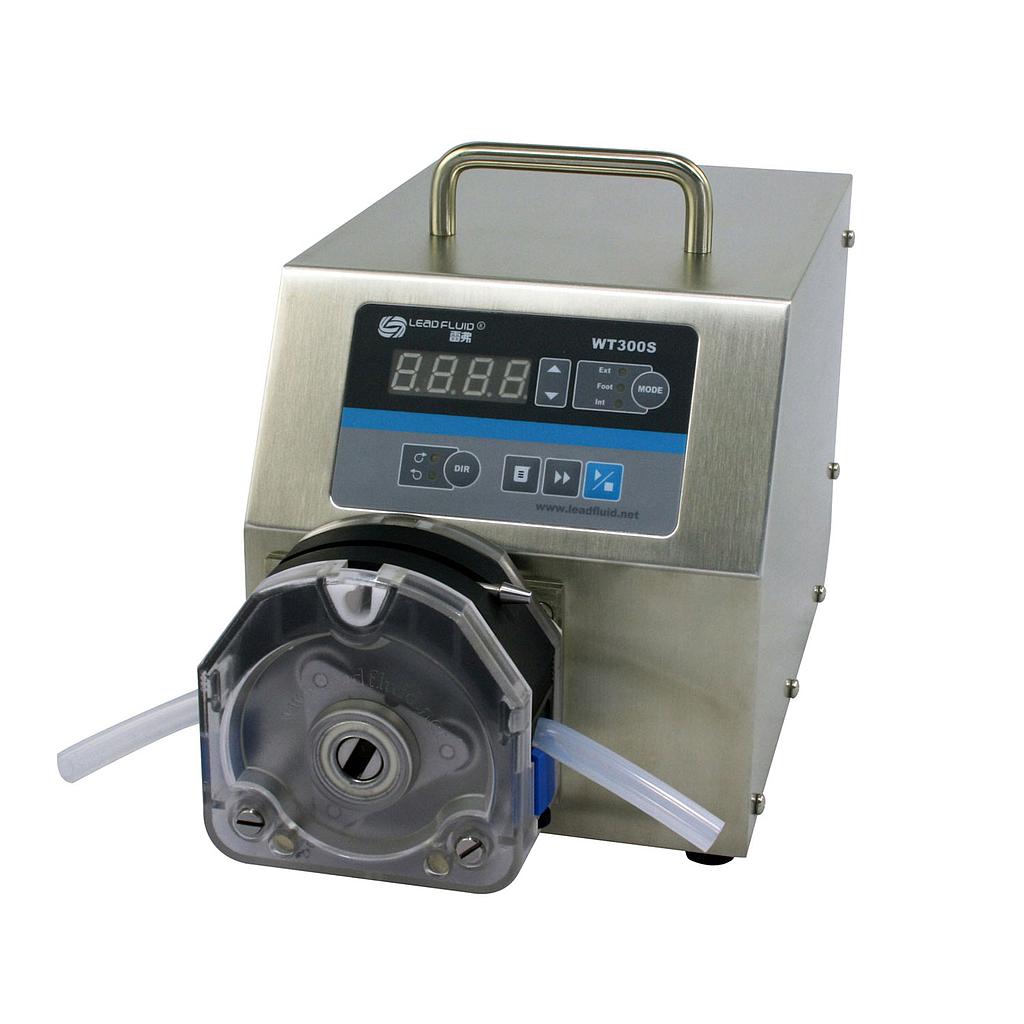

Leadfluid WT300S Basic Variable Speed Peristaltic Pump (3-3500mL/min, 1 CH)

Specifications

Flow range: 3-3500 mL/min

Speed range: 30-350 rpm/min

Speed resolution(rpm): 1 rpm

Flow accuracy: 3%

Power supply: AC 220V+/-10%, 50Hz/60Hz; AC 100V+/-10%, 50Hz/60Hz

Power consumption: <200W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: 0~40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)

Weight: 6.2kg (13.9 lbs)
