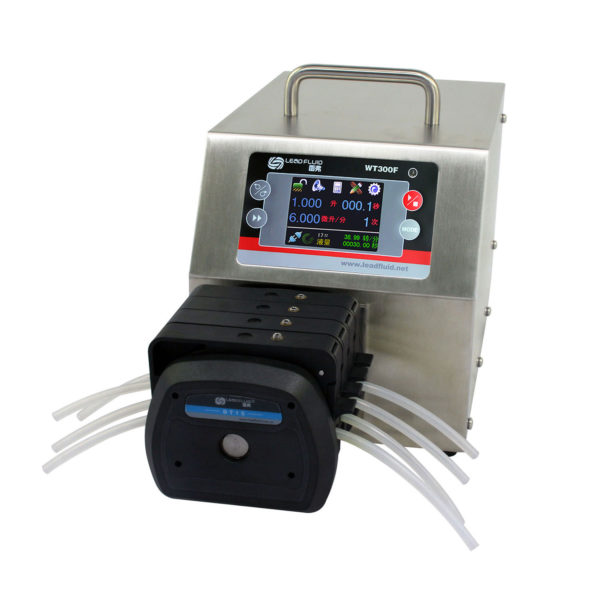

Leadfluid WT300F Intelligent Dispensing Peristaltic Pump (0.006-4000mL/min, 4CH)

Specifications

Flow range: 0.006-4000 mL/min

Speed range: 0.1-350 rpm

Speed resolution: 0.1 rpm

Flow accuracy: 0.5%

Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)

Power consumption: <100W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: 0-40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)

Weight: 6.2kg (13.9 lbs)
