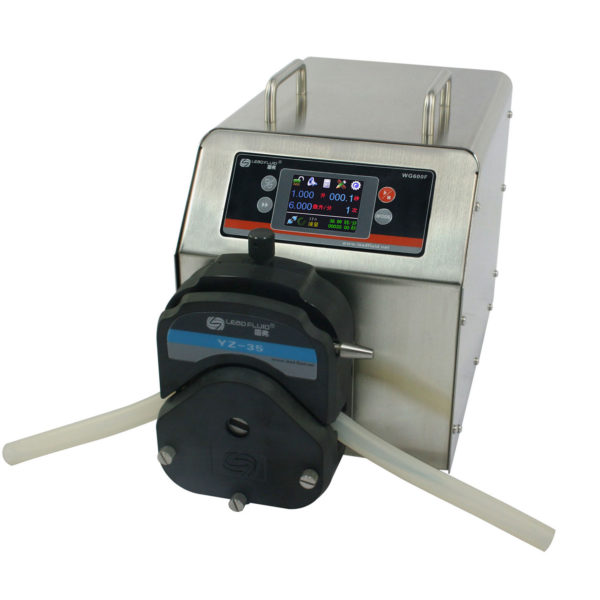

Leadfluid WG600F Intelligent Industrial Peristaltic Pump (0.01-13 L/min, 1 CH)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelWG600F
P/NWG600F(YZ35)
OriginChina
Warranty12 months
USD 3,643.20
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications
Flow range: 0.01-13 L/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Flow accuracy: 0.5%
Power supply: AC 100-240V 50Hz/60Hz
Power consumption: <400W
External on/off control: 5V, 12V (standard), 24V (optional); External analog control: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: Temperature 0~40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 350 x 235 x 315 mm (13.8 x 9.3 x 12.4 inch)
Weight: 15 kg (33.1 lbs)
| Drive type | Pump head | CH | Tubing size (mm) | Flow rate (L/min) per channel |
| WG600F | YZ35 | 1 | 73# 82# | 0.01-13 |
| 2 x YZ35 | 2 | 73# 82# | 0.01-13 |
