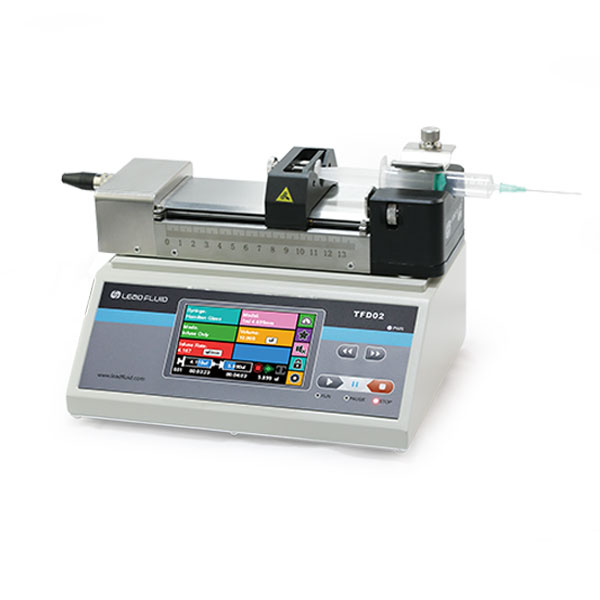

Leadfluid TFD02-01 Laboratory Syringe Pump (10μl-60mL; 1chanel)

Software system: LF-Toutch-OS software syestem.

Syringe specification: 10μl-60mL

Channel number: 1

Max stroke Range: 110mm

Stroke resolution: 0.156 μm/μstep

linear velocity range: 1 um/min to 150 mm/min

Linear velocity regulating resolution: 1 um/min

Linear travel accuracy: error <±0.35%（>30% of pump stroke）

Linear thrust, maximum rated: > 100n

Thrust adjustment: 1-100% arbitrary adjustable.

Syringe selection: built-in syringe manufacturers, choose syringe model; Or custom syringe, direct input syringe diameter

Flow correction: through the calibration procedure to obtain more accurate fluid volume

Display: 4.3 inch color LCD, 480×272 resolution, color 65K

With screen display and transfusion volume, quantity of liquid, flow rate, direction, syringe specification, etc.

Animation display for operating status

Operation mode: touch screen and physical buttons

Power-off memory: keep saved parameters

Other features: pause and stop, warning tone, parameters lock

Fast forward and retreat quickly

Indicator, state signal output: one for stop state, another one for direction state

Control signal input: control start/stop and direction

Communication interface: RS485, MODBUS

Power supply: 100-240V AC / 20W

Working temperature: 5~40°C (41~104°F)

Working environment relative humidity: < 80% RH

Controller dimension: 245x205x95 mm (9.6×8.1×3.7 inch)

Drive dimension: 266x86x76mm (10.5×3.4×3 inch)

Weight: 3.8kg (8.4lbs)
