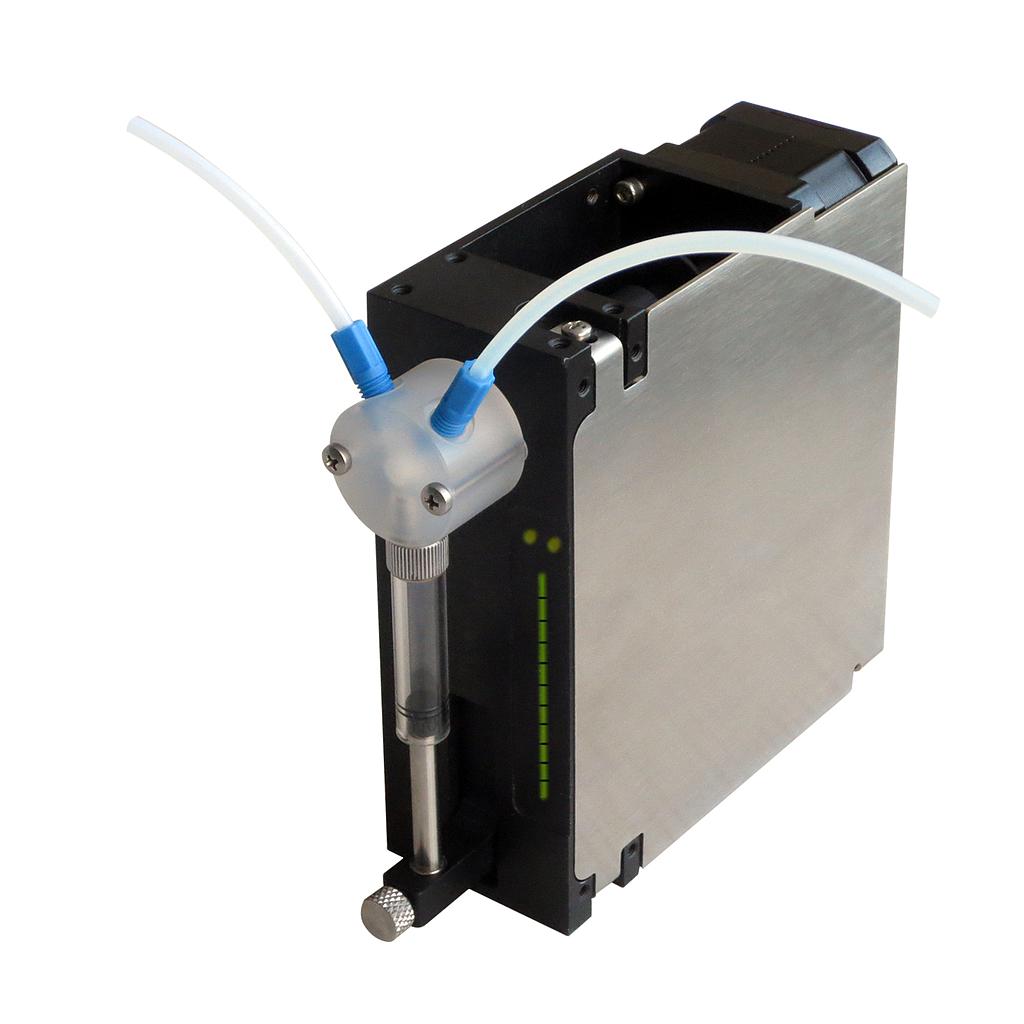

Leadfluid G3030-1S Industrial Syringe Pump (5 mL, 2CH)

Specifications

Flow accuracy：error≤1% (rated stroke)

Flow repeatability : repeatability≤0.5%

Rated stroke( step)：30mm(3000 steps)

Linear speed:0.005mm/s-25mm/s

Time for rated stroke:1.2s-6000s

Control resolution:0.01mm(1 step)

Plunger drive force( max) =76N

Syringe model：50 UL，100 UL，250 UL，500 UL，1 mL，2.5 mL,，5 mL

Valve type： 4 -port 90°valve(Standard)

3- port 120° valve(Optional)

Communication interface :RS485/RS232 can setup

Communicate baud rate :9600/38400

Pump parameter setting：7 dial DIP switch

Dimension (L×W×H)：110×44.4×127(mm)

Power supply：DC 24V/1.5A

Working temperature：15℃-40℃(determined by the PTFE of the syringe )

Working Relative Humidity: ＜80%

Weight：0.98kg
