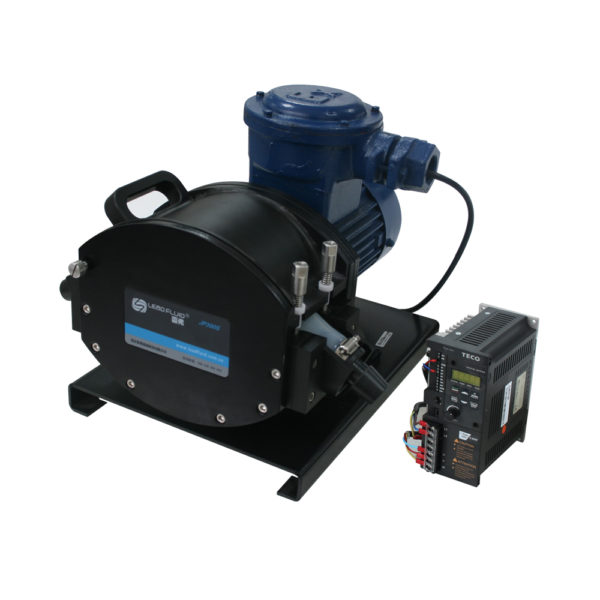

Leadfuid FP300S-A3 Explosion-proof Peristaltic Pump (Max 35L/min, 1CH)

Specifications

• Flow rate: Max 35L/min .

• Speed range: 30～350rpm

• Frequency converter infinitely adjustable-speed (standard configuration :converter and motor, without connecting cable)

• Control function: Start/stop，Positive and negative, adjust speed, communication etc functions.

• Pump head :PL48

• Tube: 88#，92#，191#，193#

• Power supply:AC380V±10%

• Power consumption： 0.37kw

• Working environment: Temperature 0℃ – 40℃ ，relative humidity<80%

• Anti-explosion Grade: DIIBT4

• IP Grade: IP55

• Casing Dimensions: （LxWxH）416*280*334

• Weight: 49Kg
