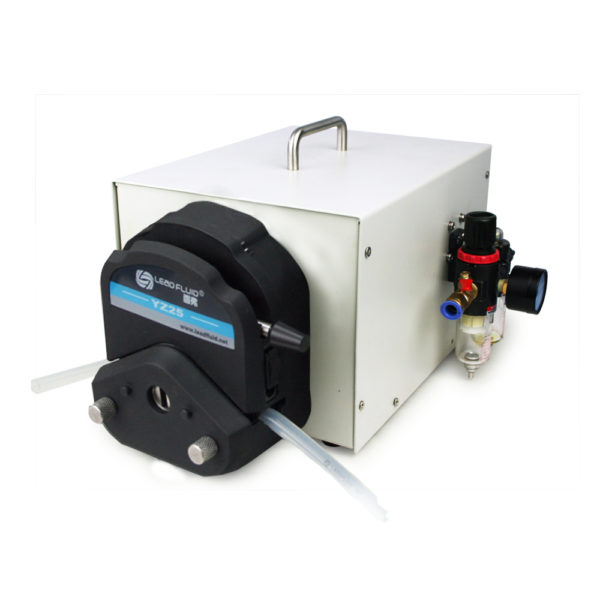

Leadfluid FG600S-Q Pneumatic Type Peristaltic Pump (Max 12L/min, 1CH)

Specifications

Flow rate：Max 12L/min

• Speed range :140-600rpm（On load, speed fluctuation is bigger than motor driven ）

• Adjust speed ：Stepless speed regulation ,by adjust the air pressure or flow valve control.

• Control function: Start/stop（standard），reversing function（optional）

• Gas supply pressure : 0.1-0.7MPa

• Gas consumption:≥0.3m³/min

• Working environment: Temperature -10℃-60℃，relative humidity <80%

• IP grade： IP65

• Casing dimensions ：（LxWxH）309*316*237

• Weight :11Kg

FG600S-Q Peristaltic pump applicable pump head, tubing and flow rate：
