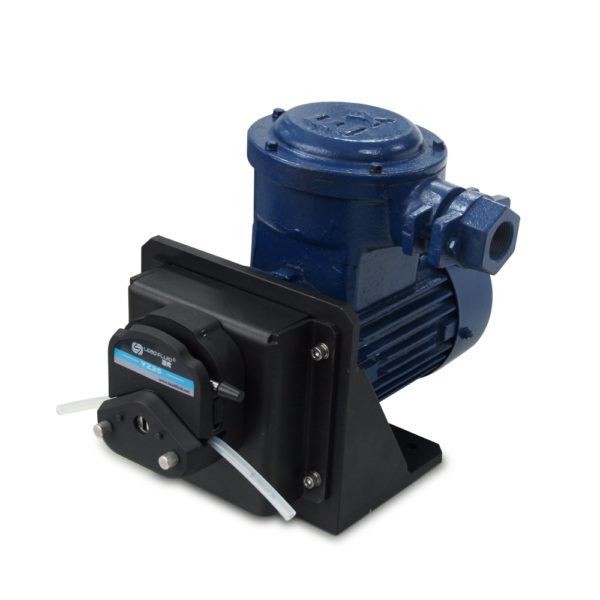

Leadfluide FG600S-A3 Explosion-proof Peristaltic Pump (0.006-6L/min, 2 CH)

Specifications

• Flow range :0.006-6L/min

• Speed range: 100-600rpm

• Adjust speed: Frequency converter infinitely adjustable-speed (standard configuration :converter and motor, without connecting cable)

• Speed resolution: 0.1HZ（The corresponding rotational speed is1.8rpm）

• Control function: Start/stop，Positive and negative, adjust speed, communication etc functions.

• Power supply: Three phase 380 v (AC220V optional)

• Power consumption: 0.37KW

• Working environment: Temperature 0℃-40℃，relative humidity<80%

• Anti-explosion Grade: DIIBT4

• IP Grade: IP55

• Casing Dimensions: （LxWxH）324*250*291

• Weight: 26Kg

FG600S-A3 Peristaltic pump applicable pump head, tubing and flow rate：
