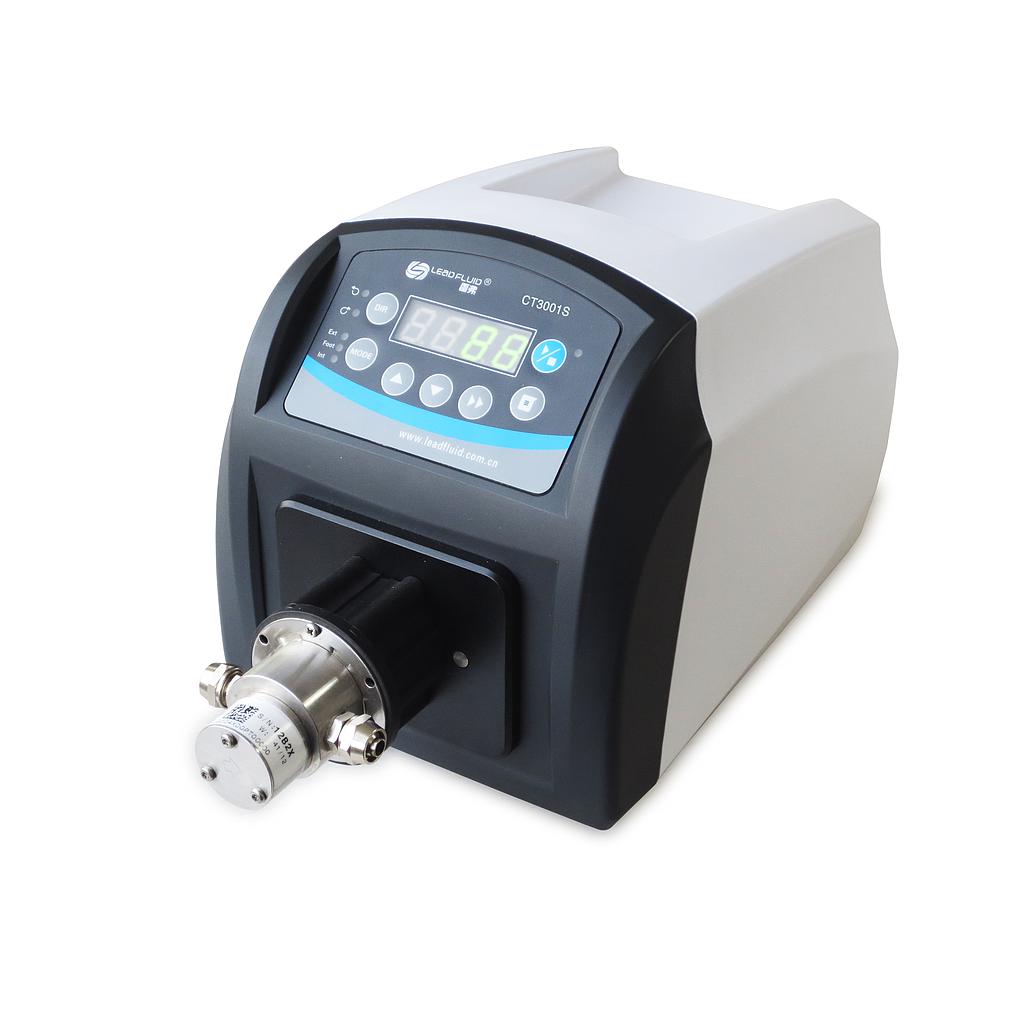

Leadfluid CT3001S Micro Gear Pump (90- 2700mL/min, 1CH)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelCT3001S
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications
Flow range:90-2700ml/min
Speed range:300-3000rpm/min
Speed resolution: 1rpm/min，accuracy 3%
Adjusting way:Mask keypad operation
Display mdoe:4 LED digital display
Power supply:AC 88-264V 50Hz/60Hz（standard）
consumption:<50W
Working envronment:Environment 0~ 40℃ humidity <80%
Dimension size:182*343* 198mm
Drive weight:3.3kg
IP standard:IP31
CT3001S suitable pump head
| Pump head | Gear materal | Pressure (MPa) | Pressure (MPa) | Liquid temperature℃ |
| MG204XD0PT00000 | PEEK | ≤0.8 | 15-900 | -45-120 |
| MG209XD0PT00000 | PEEK | ≤0.8 | 30-1800 | -45-120 |
| MG213XD0PT00000 | PEEK | ≤0.3 | 46-2700 | -45-50 |
| MG204XD0TT00000 | PTFE | ≤0.8 | 15-900 | -45-120 |
| MG209XD0TT00000 | PTFE | ≤0.8 | 30-1800 | -45-50 |
| MG213XD0TT00000 | PTFE | ≤0.3 | 46-2700 | -45-50 |
