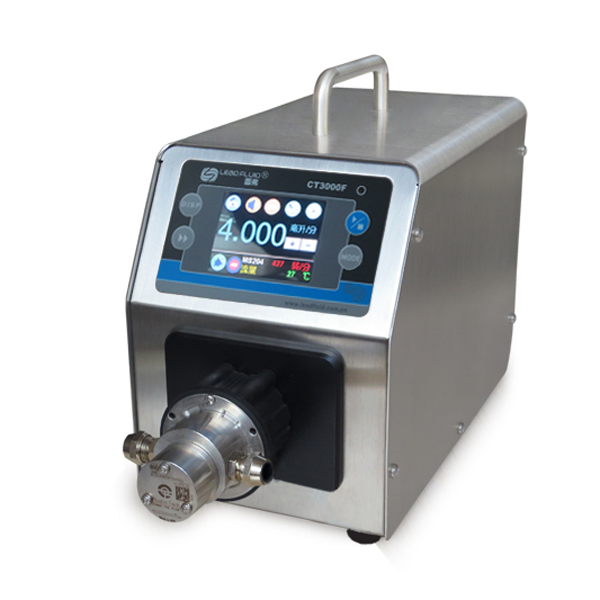

Leadfluid CT3000F Micro Gear Pump ( 15-2700 mL/min, 1CH)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelCT3000F
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications
Flow range:15-2700 mL/min
Speed range:50-3000 rpm/min
Speed resolution:1rpm/min，accuracy:0.5%
Time dispensing:0.1-99.99 secpmds
Pause time:0.1-999.9 seconds
Dispensing times:0-999
Ajusting way:keypad and touch screen operation
Display mode:65565 Color LCD
power supply:AC 90-264V 50Hz/60Hz
Consumption:<150W
work environment:Environment 0 -40℃ ,humidity <80%
dimension size:342*198* 182mm
Drive weight:5.5kg
IP standard:IP31
CT 3000F suitable pump head
| Pump head | Gear materal | Pressure (MPa) | Flow range (mL/min) | Liquid temperature℃ |
| MS204XD0PT00000 | PEEK | ≤1.4 | 15-900 | -45-120 |
| MS209XD0PT00000 | PEEK | ≤0.9 | 30-1800 | -45-120 |
| MS213XD0PT00000 | PEEK | ≤0.8 | 45-2700 | -45-120 |
