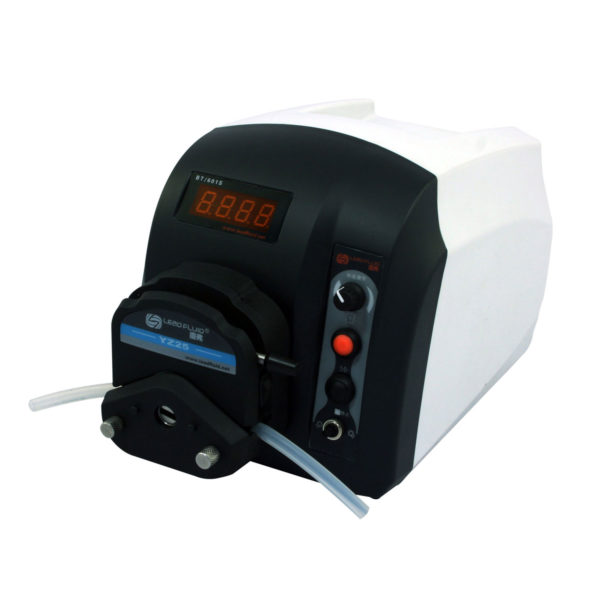

Leadfluid BT601S Basic Variable Speed Peristaltic Pump (0.006-2900mL/min, 2CH)

Specifications

Flow range: 0.006-2900 mL/min

Speed range: 0.1-600 rpm

Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; betweem 100-600 rpm, 1 rpm resolution

Flow accuracy: 0.5%

Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

Power consumption: < 50W

External control on/off signal: 5V, 12V (standard), 24V (optional). external analog control signal control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: Temperature 0~40°C; Relative humidity <80%

IP grade: IP31

Dimensions (L x W x H): 260 x 181 x 198 mm (10.2 x 7.1 x 7.8 inch)

Weight: 4.9 kg (10.9 lbs)
