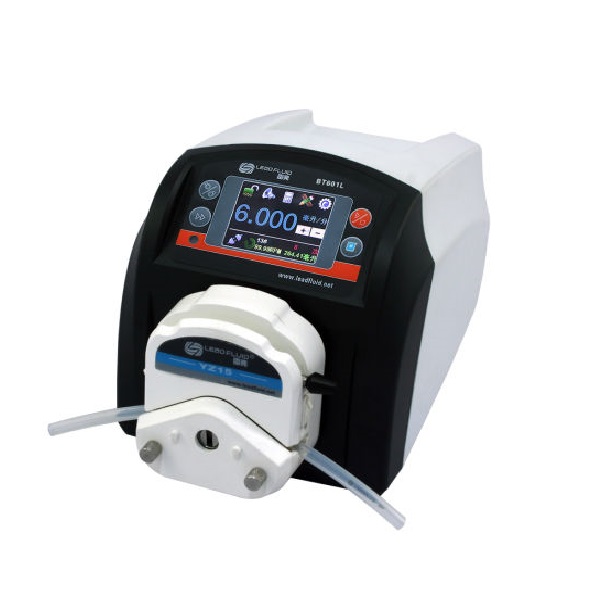

Leadfluid BT601L Intelligent Flow Peristaltic Pump (0.006～2300mL/min, 1 CH)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelBT601L
P/NBT601L(YZ15)
OriginChina
Warranty12 months
USD 1,737.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Flow range: 0.006～2300mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 50W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: Temperature 0~40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 257 x 180 x 197mm (10.12 x 7.80 x 7.17 inch)
Weight: 4.9 kg (12.1 lbs)
BT601L SuitablePump Heads and Tubing, Flow Parameters
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
| BT601L (ABS case) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |
| YZ25 | 1 | 15# 24# | 0.16-1700 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 |
