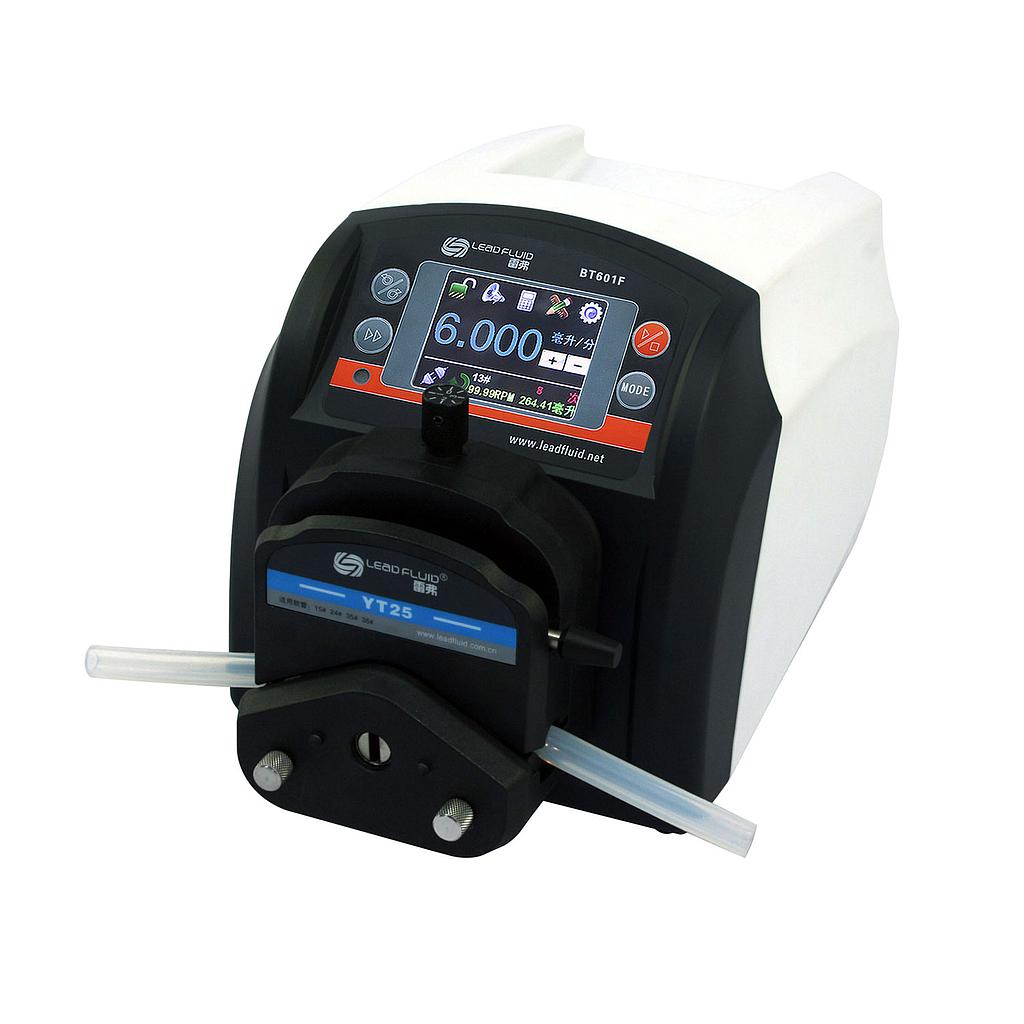

Leadfluid BT601F Intelligent Dispensing Peristaltic Pump (0.16-2900mL/min, 1 CH)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelBT601F
P/NBT601F(YT25)
OriginChina
Warranty12 months
USD 2,064.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Flow range: 0.16-2900 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 50W
Logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0-40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 257 x 180 x 197 mm (10.12 x 7.09 x 7.76 inch)
Weight: 4.9 kg (10.80 lbs)
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
| BT601F | YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-2300 |
| YZ25 | 1 | 15# 24# | 0.16-1700 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 |
