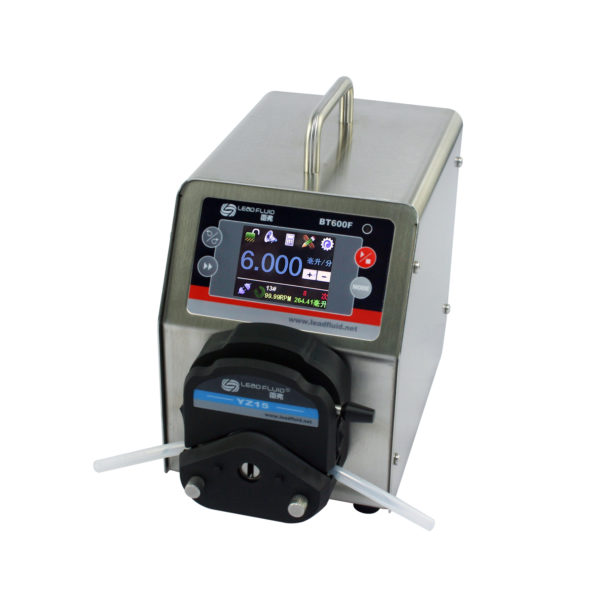

Leadfluid BT600F Intelligent Dispensing Peristaltic Pump (0.006-2900mL/min, 2CH)

Specifications

Flow range: 0.006-2900 mL/min

Speed range: 0.1-600 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

Power consumption: <60W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0~40°C; Relative humidity <80%

IP rating: IP31

Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

Weight: 5.2kg (11.5 lbs)
