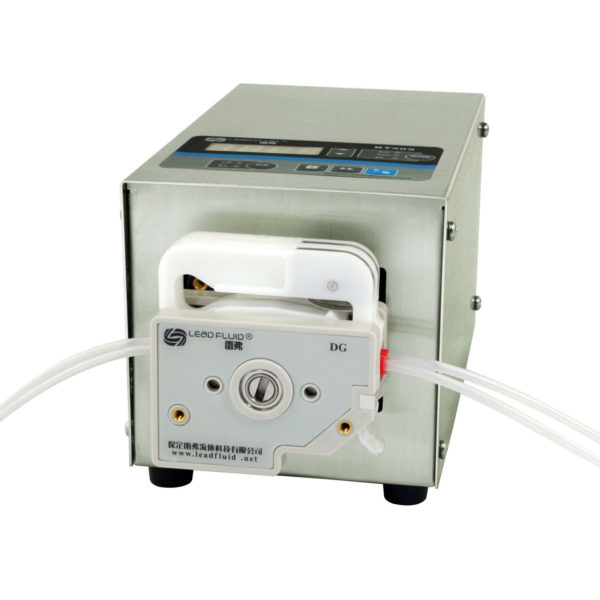

Leadfluid BT50S Microflow Variable-Speed Peristaltic Pump (0.00011-190mL/min, 2CH)

Flow range: 0.00011-190 mL/min

Speed accuracy: 0.5%

Speed range: 0.1-50 rpm

Speed resolution: 0.1 rpm

Power supply: AC 220V ± 10%, 50Hz/60Hz (standard); AC 110V ± 10%, 50Hz/60Hz (optional)

Power consumption: < 25W

External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

External communication interface: RS485 MODBUS

Ambient temperature: 0-40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 225 x 132 x 128 mm (8.86 x 5.20 x 5.04 inch)

Weight: 2.7 kg (6.0 lbs)

BT50S Suiable Pump Heads and Tubings, Flow Parameters
