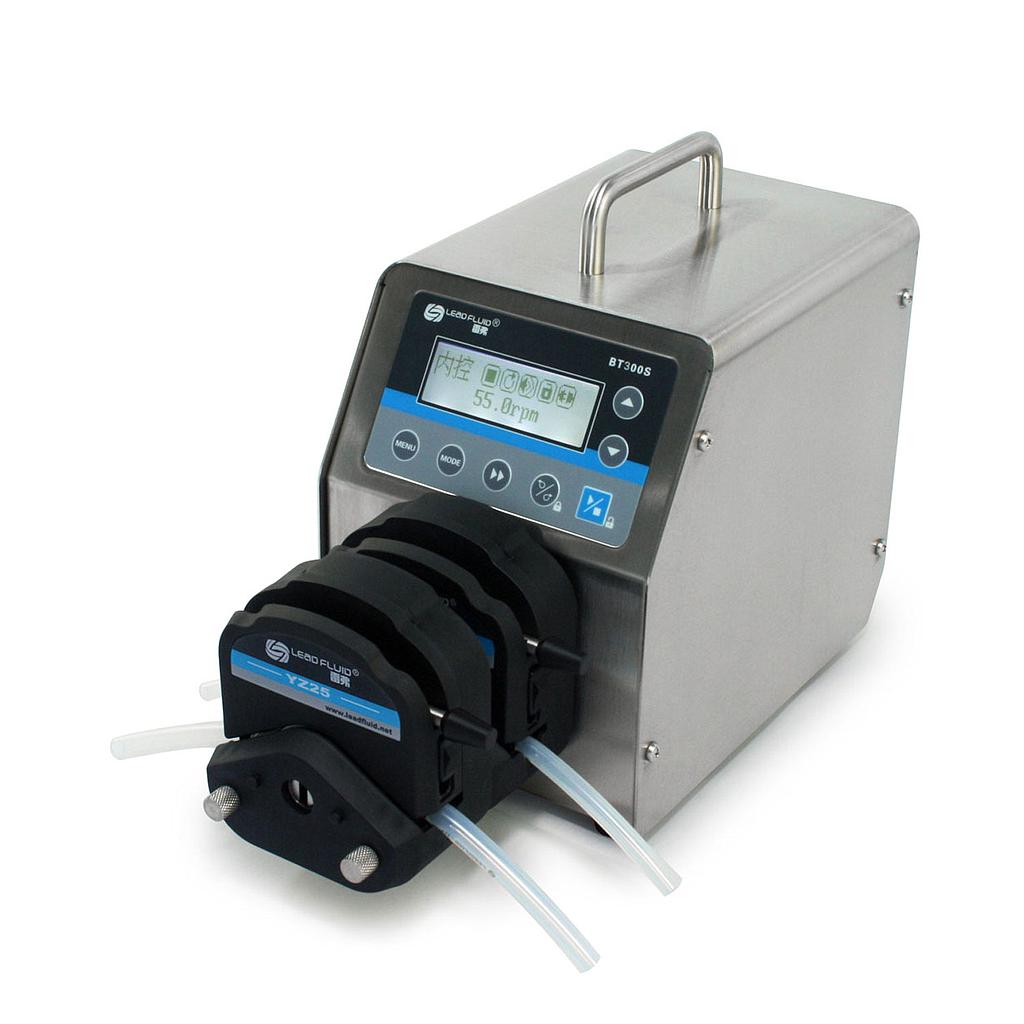

Leadfluid BT300S Basic Variable Speed Peristaltic Pump (0.006～1300mL / min, 2 CH)
Specifications
Flow range: 0.006～1300 mL/min
Speed range: 0.1-350rpm
Speed accuracy: 0.2%
Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-350 rpm, 1 rpm resolution
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 50W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
External communication interface: MODBUS RS485
Ambient temperature: 0-40 °C
Relative humidity: < 80%
IP grade: IP31
Dimension (L x W x H): 264 x 150 x 270 mm (10.39 x 5.91 x 10.63 inch)
Weight: 4.9 kg (10.8 lbs)
BT300S Suitable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump head | ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT300S | YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-1340 |
| YZ25 | 1 | 15# 24#35#36# | 0.17-990 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17#18# | 0.006-1340 | |
| 2 x YZ25 | 2 | 15# 24#35#36# | 0.17-990 | |
| DT15-24 | 2 | 19# 16# 25# 17# | 0.07-1300 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1340 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.17-1690 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1340 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
