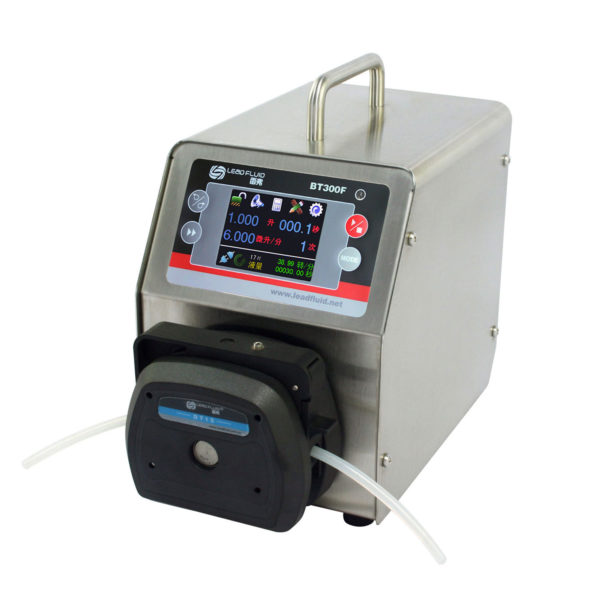

Leadfluid BT300F Intelligent Dispensing Peristaltic Pump (0.006-1600mL/min, 4CH)

Specifications

Flow range: 0.006-1600 mL/min

Speed range: 0.1-350 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

Power consumption: <50W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0~40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

Weight: 5.3 kg (11.7 lbs)

BT300F Suitable Pump Heads and Tubing, Flow Parameters
