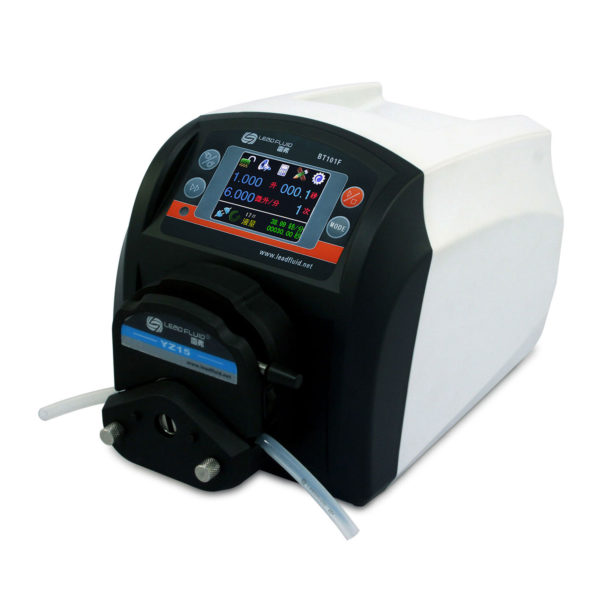

Leadfluid BT101F Intelligent Dispensing Peristaltic Pump (0.0002～49ml/min, 1CH, 6 rollers)
ManufacturerLeadfluid(View more products from this manufacturer)
ModelBT101F
P/NBT101F(DG6-1)
OriginChina
Warranty12 months
USD 1,257.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications
Flow range: 0.0002～49 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50 Hz/60Hz
Power consumption: < 30W
Logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0-40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 257 x 180 x 197mm (10.12 x 7.17 x 7.79 inch)
Weight: 4.5 kg (9.92 lbs)
| Drive type | Pump heads | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT101F | DG6-1 (6rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
| DG10-1 (10rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-2 (6rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-2 (10rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-4 (6rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-4 (10rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-18 | 1 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| DT10-28 | 2 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.17-720 |
