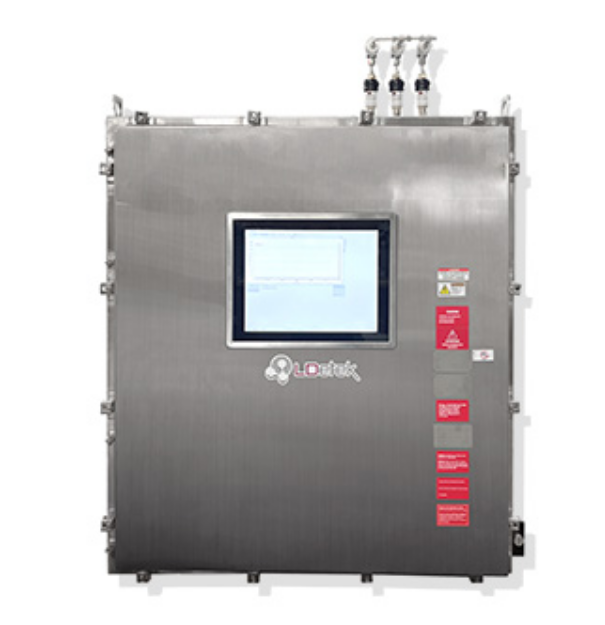

LDetek MultiDetek3 EX GC in Explosion Proof Package (100 PSI (6.9 bar) ~ 5–30 PSI (0.35–2 bar))

GENERAL DIMENSIONS: 38’’ W (965mm) X 30.37’’D (771mm) X 56.93’’ H (1116mm) (other sizes available on request)

MATERIAL: Stainless Steel

DOOR CLEARANCE: 37’’ (932 mm)

WEIGHT: 227 kg

STANDARD FEATURES

1 Tryclops X-Purge controller, XP version certified for Zone 1 and Zone 2 hazardous areas

1 air Exhaust

1 air purge gas inlet kit

1 8.4’’ panel PC per MultiDetek3 GC

1 Adjustable check valve on sample gas

1 Flashback arrestor on sample gas

1 pneumatic shut off valve on sample gas

OPTIONS

1 Vortex cabinet cooler with AC muffler

Additional instruments can be added

Up to three purged enclosures can be mounted in cascade using the same Tryclops

Floor mount rack

OPERATING ENVIRONMENT: Indoor and outdoor

CARRIER GAS PRESSURE: 100 PSI (6.9 bar)

SAMPLE GAS PRESSURE: 5-30 PSI (0.35-2 bar)

GAS CONNECTIONS: 1/8’’or 1/4’’ VCR or Compression type (Swagelok)

PURGE PROTECTIVE GAS SUPPLY QUALITY: Dry air grade : Water and oil-free, - 40° F (- 40° C) dew point, particles 5μ, ISA grade hydrocarbon-free

SUPPLY: 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz

POWER CONSUMPTION: Maximum 660 watts

APPLIED STANDARDS

EN60079-0

EN60079-2

EN60079-7

EN60079-11

EN60079-15

EN60079-18

CERTIFICATIONS

IECEx : Ex pxb IIB+H2 T4 Gb

ATEX : II 2 G Ex pxb IIB+H2 T4 Gb

CE (MultiDetek3)

OPERATING TEMPERATURE: -20 °C to 47 °C

T CLASSIFICATION: T4

IP: 66

ENCLOSURE VOLUME: 727.8 liters

MINIMUM PURGE FLOW: 120 L/min

MINIMUM PURGE TIME ON START-UP: 78 minutes

MAXIMUM OVERPRESSURE: 0.1 PSI (6.7 mBar)

MINIMUM OVERPRESSURE: 0.02 PSI (1.24 mBar)

MAXIMUM SUPPLY AIR PRESSURE: 100 PSI (6.9 bar)

MINIMUM SUPPLY AIR PRESSURE: 15 PSI (1.4 bar)

 Datasheet
