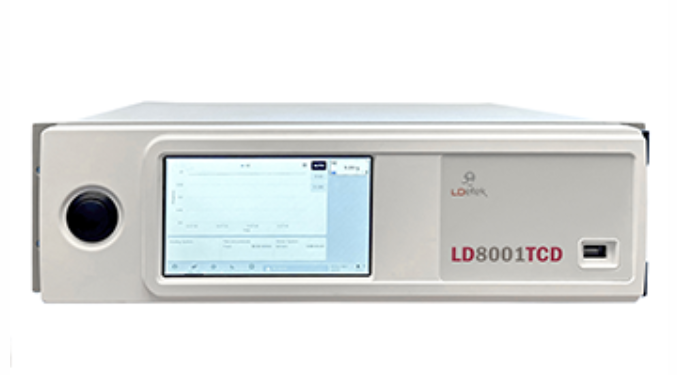

LDetek LD8001-TCD-BX-C2-D0-E0-F1 Binary Gas Analyzer (50 – 200 sccm)

Sample Gas: Contact Engineer to select sample gas

Output: No Output

Serial Communication: No serial Interface

Intergrated Sampling system: 1 sample + zero + span

Detector type: Thermal conductivity detector (TCD)

Range: Ppm to % (application dependant)

Accuracy: Better than 3% FS

Standard features:

Manual or autoranging (user selectable)

Microprocessor controlled

Touchscreen 7 inches HDMI TFT display

Self diagnosis system with auto-resolve alarm

LAN/Web control

Alarm historic:

Digital outputs for remote monitoring: (all dry relay contacts)

System status (1 output)

Range in use (3 output)

Calibration in use (1 output)

Gas connections: Sample: 1/8” compression fittings  Vent: 1/8” compression fitting

Sample flow: 50-200 sccm

Reference gas: 50-200 sccm

Sample gas operating pressure: 3 to 30 psig

Operating temperature: 10 °C to 45 °C

Supply: 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz

Power consumption: Maximum 40 watts

Weight: 30 lbs (14 kg)

Enclosure type: 3U rackmount

Ingress protection

IP20 in accordance with IEC 60529

Enclosure finish: RAL7030 powder coat

Certification: In compliance with EMC directives: IEC 61000-4-3: 2020, IEC 61000-4-6: 2013, IEC 61000-4-2: 2008, IEC 61000-4-4: 2012, IEC 61000-4-5: 2014 A1: 2017, IEC 61000-4-8: 2009, IEC 61000-4-11: 2020 for immunity & CISPR 32: 2015 A1: 2019, FCC Part 15, Subpart B: 2021 for emissions.
